Mecof 45 mm Radial Drilling Machine
Mecof 45 mm Radial Drilling Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description

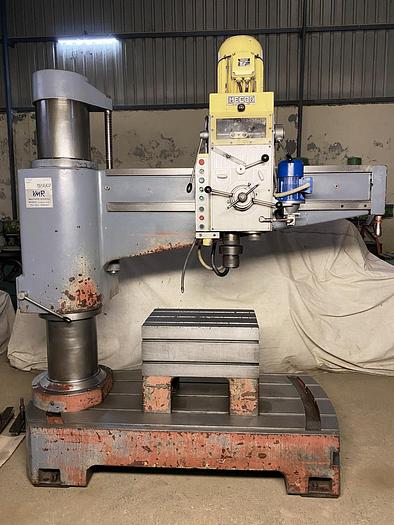

Mecof (Italy) make Radial Drilling & Tapping Machine in excellent working condition. The Drilling Capacity of the Machine is 45 mm and the Arm Length is 1475 mm. The technical details are as follows -
Make - Mecof (Italy)
Model - 40C
Drilling Capacity - 45 mm
Spindle Diameter - 85 mm
Arm Length - 1475 mm
Spindle Taper - MT 5
Spindle Feed Travel - 240 mm
Spindle Speeds - 35 rpm to 1460 rpm
Spindle Feed Rates - 0.07 mm/rev to 0.50 mm/rev
Vertical Travel of Arm - 620 mm
Table Size - 650 mm x 410 mm
Clamping Type - Manual
- Complete with Drilling & Tapping Quick Change Tool Holders.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Mecof |
| Model | 40C |
| Condition | Used |
| Make | Mecof (Italy) |
| Model | 40C |
| Drilling Capacity | 45 mm |
| Spindle Diameter | 85 mm |
| Arm Length | 1475 mm |
| Spindle Taper | MT 5 |
| Spindle Feed Travel | 240 mm |
| Spindle Speeds | 35 rpm to 1460 rpm |
| Spindle Feed Rates | 0.07 mm/rev to 0.50 mm/rev |
| Vertical Travel of Arm | 620 mm |
| Table Size | 650 mm x 410 mm |
| Clamping Type | Manual |
| Other Information 1 | - Complete with Drilling & Tapping Quick Change Tool Holders. |
| Other Information 2 | - Machine is in excellent working condition. |
