TOS W100A 100 mm Spindle Horizontal Boring Machine
TOS W100A 100 mm Spindle Horizontal Boring Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description

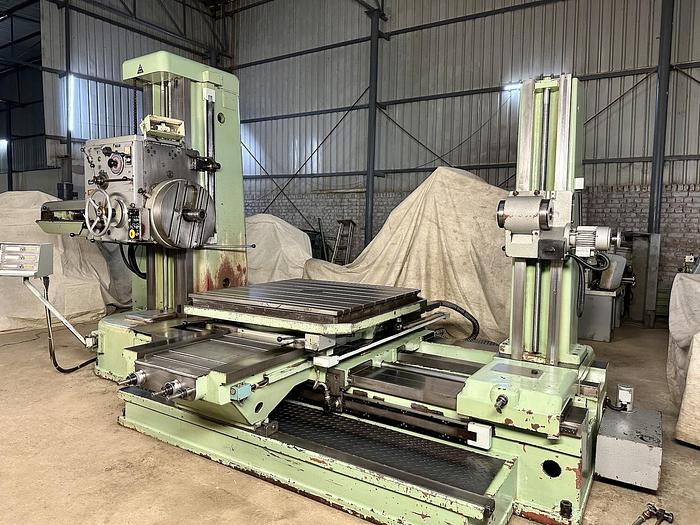

Horizontal Boring Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is W100A and the Table Size is 1250 mm x 1250 mm. The machine is complete with its Facing Chuck and Tailstock. The technical details are as follows -
Make - TOS (Czech Republic)
Model - W100A
Spindle Diameter - 100 mm
Table Size - 1250 mm x 1250 mm
Cross Travel - 1600 mm
Vertical Travel - 1120 mm
Longitudinal Travel - 1250 mm (with Tailstock equipped)
Spindle Travel - 900 mm
Facing Chuck Diameter - 600 mm
Spindle Taper - MT 6
Spindle Speeds - 7 rpm to 1120 rpm
- Complete with Facing Chuck & Tailstock.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | W100A |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | W100A |
| Spindle Diameter | 100 mm |
| Table Size | 1250 mm x 1250 mm |
| Cross Travel | 1600 mm |
| Vertical Travel | 1120 mm |
| Longitudinal Travel | 1250 mm (with Tailstock equipped) |
| Spindle Travel | 900 mm |
| Facing Chuck Diameter | 600 mm |
| Spindle Taper | MT 6 |
| Spindle Speeds | 7 rpm to 1120 rpm |
| Other Information 1 | - Complete with Facing Chuck & Tailstock. |
| Other Information 2 | - Operating Manual & Electrical Drawings are available. |
| Other Information 3 | - Machine is in excellent working condition. |
