Dorries VCE 2000140 CNC Ram-type VTL Machine
No longer available
Dorries VCE 2000140 CNC Ram-type VTL Machine
Location:New Delhi, India
Description

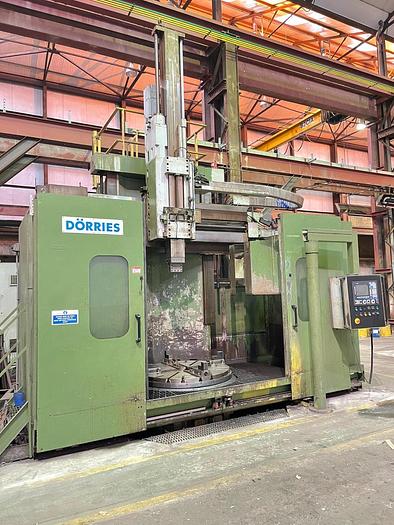

Dorries (Germany) make CNC Ram-type Vertical Turning Lathe Machine in excellent working condition. The model of the machine is VCE 2000/140 and it is equipped with a 12 tool Automatic Tool Changer. The Max. Height of Job under the Cross-Rail is 1900 mm. The technical details are as follows -
Make - Dorries (Germany)
Model - VCE 2000 / 140
Table Diameter - 1400 mm
Max. Swing Diameter - 2100 mm
Max. Height under Bridge to Table - 1900 mm
Ram Travel - 1500 mm

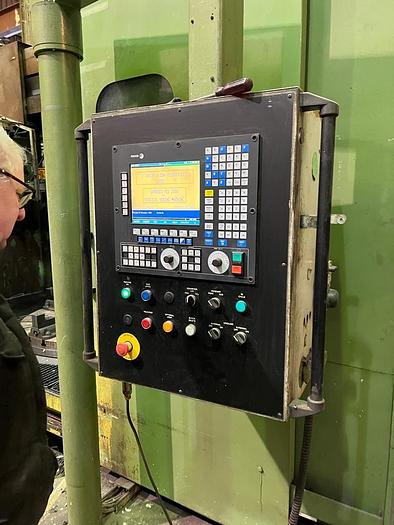

CNC Control - Fagor 8055T
Automatic Tool Changer - 12 Station ATC
Weight of the Machine - 39 Tons (Approx.)
- Retrofitted by Dorries in 2008.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Dorries |
| Model | VCE 2000 / 140 |
| Condition | Used |
| Make | Dorries (Germany) |
| Model | VCE 2000 / 140 |
| Table Diameter | 1400 mm |
| Max. Swing Diameter | 2100 mm |
| Max. Height under Bridge to Table | 1900 mm |
| Ram Travel | 1500 mm |
| CNC Control | Fagor 8055T |
| Automatic Tool Changer | 12 Station ATC |
| Weight of the Machine | 39 Tons (Approx.) |
| Other Information 1 | - Retrofitted by Dorries in 2008. |
| Other Information 2 | - Machine is in excellent working condition. |
