Dorries 2100 mm Swing Ram-type CNC VTL Machine
Dorries 2100 mm Swing Ram-type CNC VTL Machine
Contact us for price
Location:New Delhi, India
Description

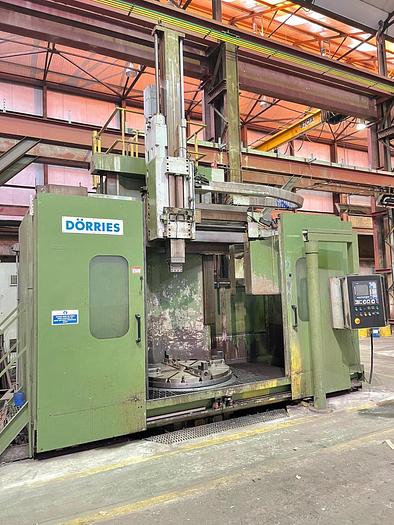

Dorries (Germany) make CNC Ram-type Vertical Turning Lathe Machine in excellent working condition. The model of the machine is VCE 2000/140 and it is equipped with a 12 tool Automatic Tool Changer. The Max. Height of Job under the Cross-Rail is 1900 mm. The technical details are as follows -
Make - Dorries (Germany)
Model - VCE 2000 / 140

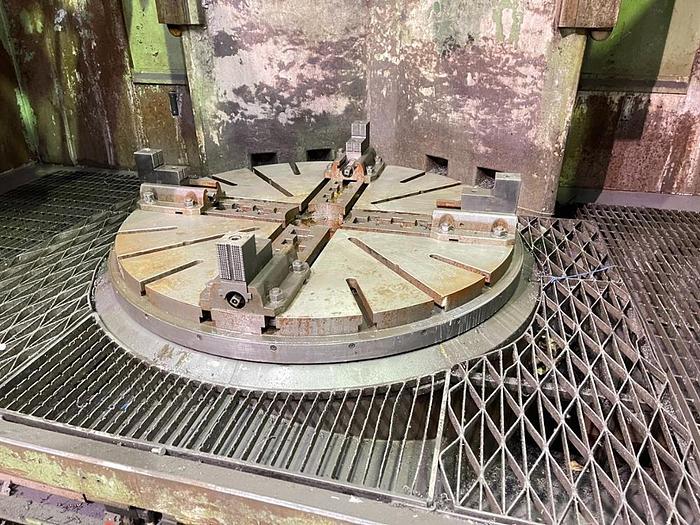

Table Diameter - 1400 mm
Max. Swing Diameter - 2100 mm

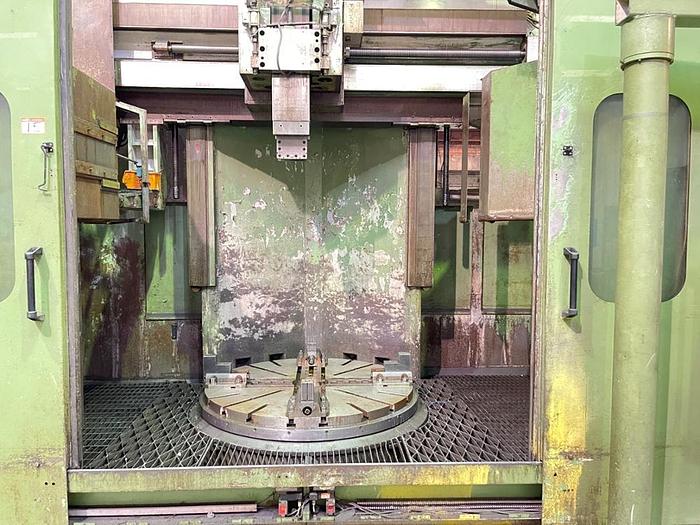

Max. Height under Crossrail to Table - 1900 mm

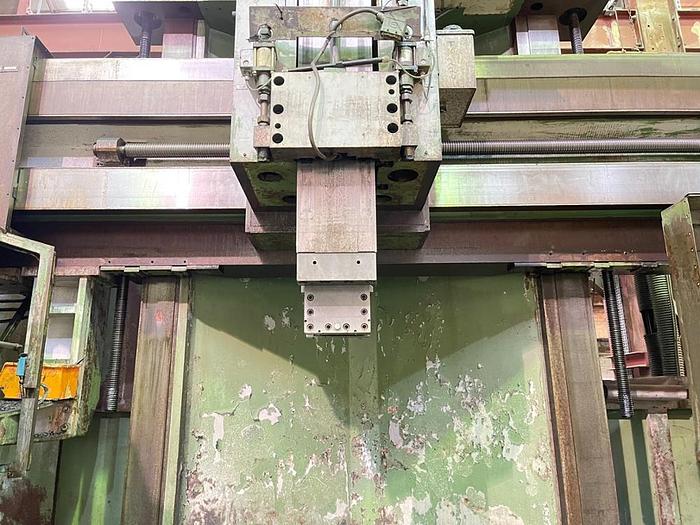

Ram Travel - 1500 mm

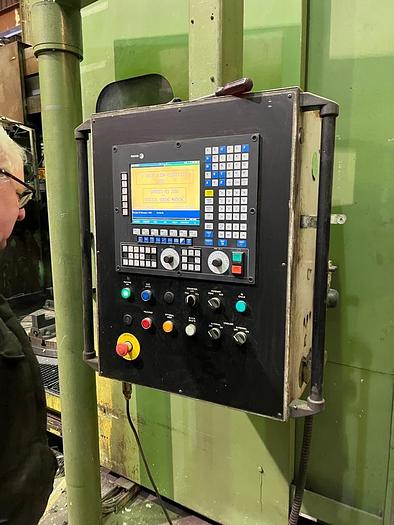

CNC Control - Fagor 8055T
Automatic Tool Changer - 12 Station ATC
Table Speed Range - 2 rpm to 224 rpm
RAM Size - 240 mm x 240 mm
Rapid Traverse Speeds - 6 m/min
Weight of the Machine - 41 Tons (Approx.)
- Retrofitted in 2008 with Fagor CNC Controller
- Cross-Rail, Slides & Ram are completely scractless.
- Operating Manuals, Electrical Drawings, Service Manuals etc are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Dorries |
| Model | VCE 2000 / 140 |
| Condition | Used |
| Make | Dorries (Germany) |
| Model | VCE 2000 / 140 |
| Table Diameter | 1400 mm |
| Max. Swing Diameter | 2100 mm |
| Max. Height under Crossrail to Table | 1900 mm |
| Ram Travel | 1500 mm |
| CNC Control | Fagor 8055T |
| Automatic Tool Changer | 12 Station ATC |
| Table Speed Range | 2 rpm to 224 rpm |
| RAM Size | 240 mm x 240 mm |
| Rapid Traverse Speeds | 6 m/min |
| Weight of the Machine | 41 Tons (Approx.) |
| Other Information 1 | - Retrofitted in 2008 with Fagor CNC Controller |
| Other Information 2 | - Cross-Rail, Slides & Ram are completely scractless. |
| Other Information 3 | - Operating Manuals, Electrical Drawings, Service Manuals etc are available. |
| Other Information 4 | - Machine is in excellent working condition. |
