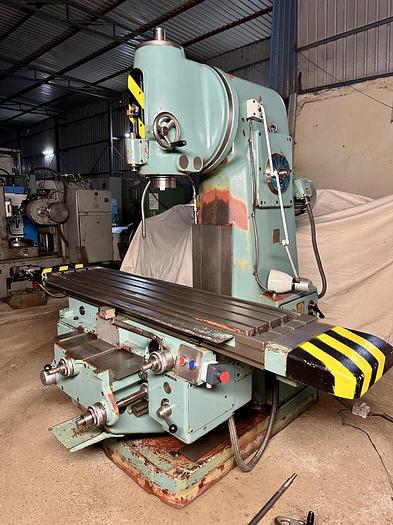

TOS Czech 1600 x 350 Vertical Milling Machine
TOS Czech 1600 x 350 Vertical Milling Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description
Pure Vertical Milling Machine made by TOS (Czech Republic) in excellent working condition. The model of the Machine is FA4AV and the Table Size is 1600 mm x 350 mm. The technical details are as follows -
Make - TOS (Czech Republic)
Model - FA4AV
Table Size - 1600 mm x 350 mm
XYZ Travels - 1000 mm x 350 mm x 425 mm
Spindle Taper - ISO 50
Spindle Speeds - 32 rpm to 1400 rpm
Table Feed Rates - 10 mm/min to 1250 mm/min
Max. Height between Table to Spindle - 550 mm
Spindle Motor - 7.5 kW
Vertical Head Rotation - +45 degree to -45 degree
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | FA4AV |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | FA4AV |
| Table Size | 1600 mm x 350 mm |
| XYZ Travels | 1000 mm x 350 mm x 425 mm |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 32 rpm to 1400 rpm |
| Table Feed Rates | 10 mm/min to 1250 mm/min |
| Max. Height between Table to Spindle | 550 mm |
| Spindle Motor | 7.5 kW |
| Vertical Head Rotation | +45 degree to -45 degree |
| Other Information | - Machine is in excellent working condition. |
