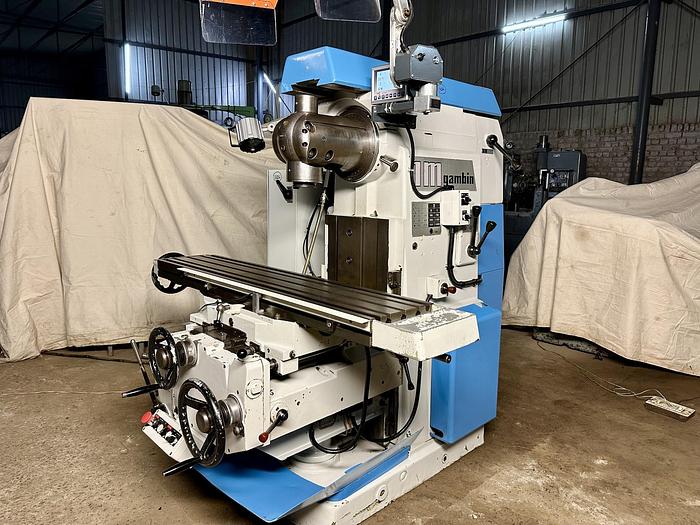

Gambin France 1M Universal Milling Machine
Gambin France 1M Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Gambin (France) make Universal Milling Machine in excellent working condition. The model of the machine is 1M and the Table Size is 1290 mm x 270 mm. The machine is capable of Horizontal, Vertical and Angular Milling operations as it has a Double Swivel type Universal Milling Head. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -
Make - Gambin (France)
Model - 1M
Table Size - 1290 mm x 270 mm
XYZ Travels - 740 mm x 260 mm x 560 mm
Spindle Speeds - 25 rpm to 1,800 rpm
Spindle Taper - ISO 40
Feed Rates of Travel - 10 mm/min to 400 mm/min
- Equipped with a 3-Axis DRO.
- Horizontal RAM travel of the Milling Head.
- Double Swivel type Universal Milling Head for Horizontal, Vertical or Angular Milling.
- Equipped with a 3-Axis DRO.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Gambin |
| Model | 1M |
| Condition | Used |
| Make | Gambin (France) |
| Model | 1M |
| Table Size | 1290 mm x 270 mm |
| XYZ Travels | 740 mm x 260 mm x 560 mm |
| Spindle Speeds | 25 rpm to 1,800 rpm |
| Spindle Taper | ISO 40 |
| Feed Rates of Travel | 10 mm/min to 400 mm/min |
| Other Information 1 | - Equipped with a 3-Axis DRO. |
| Other Information 2 | - Horizontal RAM travel of the Milling Head. |
| Other Information 3 | - Double Swivel type Universal Milling Head for Horizontal, Vertical or Angular Milling. |
| Other Information 4 | - Equipped with a 3-Axis DRO. |
| Other Information 5 | - Machine is in excellent working condition. |
