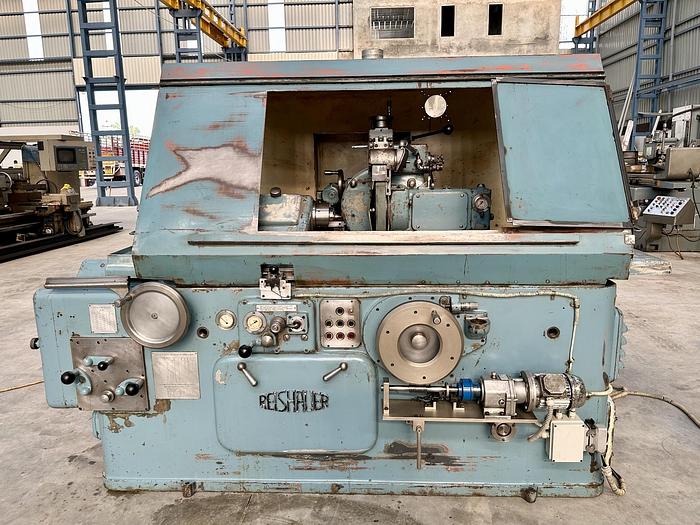

Reishauer NRK Thread Grinder Machine

Reishauer NRK Thread Grinder Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

Reishauer (Switzerland) make Thread Grinder Machine in excellent working condition. The model of the machine is NRK. The machine is complete with its Multi-Rib Wheel Dresser as well as Single-Rib Wheel Dresser. It is complete with Change Gears, spare Wheel Flanges, Crushers, Operating Manual, Electrical Drawings and Coolant Tank & Pump. The technical details are as follows -


Make - Reishauer (Switzerland)

Model - NRK

Max. Grinding Length - 450 mm

Max. Distance between Centres - 700 mm

Job Diameter Range - 3 mm to 200 mm

Minimum Pitch - 0.4 mm

Maximum Pitch - 80 mm

Grinding Wheel Diameter - 350 mm

Max. Inclination of Wheel-Head - +25 degree to -25 degree

- Equipped with Relief Grinding Attachment.

- Multi-Rib Wheel Dresser and Single-Rib Wheel Dressers available.

- Feature of Automatic Depth Adjustment "Auto-Cut".

- Complete with spare Flanges, Crushers, Change Gears etc.

- Complete with Coolant Tank and Pump.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerReishauer
ModelNRK
ConditionUsed
Stock Number1936
MakeReishauer (Switzerland)
ModelNRK
Max. Grinding Length450 mm
Max. Distance between Centres700 mm
Job Diameter Range3 mm to 200 mm
Minimum Pitch0.4 mm
Maximum Pitch80 mm
Grinding Wheel Diameter350 mm
Max. Inclination of Wheel-Head+25 degree to -25 degree
Other Information 1- Equipped with Relief Grinding Attachment.
Other Information 2- Multi-Rib Wheel Dresser and Single-Rib Wheel Dressers available.
Other Information 3- Feature of Automatic Depth Adjustment "Auto-Cut".
Other Information 4- Complete with spare Flanges, Crushers, Change Gears etc.
Other Information 5- Complete with Coolant Tank and Pump.
Other Information 6- Operating Manual & Electrical Drawings are available.
Other Information 7- Machine is in excellent working condition.
