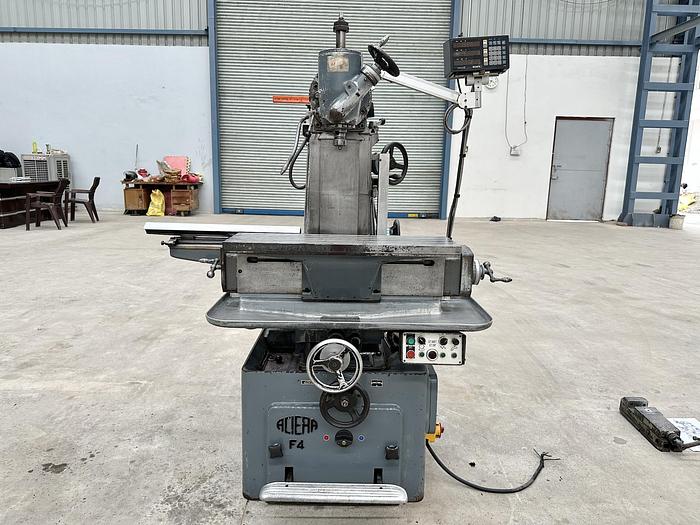

Aciera F4 Precision Universal Milling Machine
Aciera F4 Precision Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Aciera (Switzerland) make Precision Milling Machine in excellent working condition. The model of the machine is F4 and the Table Size is 800 mm x 250 mm. Due to its wide versatility and ease of handling, the machine is very suitable for High-Precision machining of complex components, tools, injection moulds, dies, punches etc. The technical details are as follows -
Make - Aciera (Switzerland)
Model - Type F4
Table Size - 800 mm x 250 mm
XYZ Travels - 400 mm x 175 mm x 450 mm
Manual Displacement of Table - 400 mm
Total Milling Length Possible - 800 mm
Spindle Taper - ISO 30
Spindle Speeds - 50 rpm to 3400 rpm
Table Feed Rates - 8 mm/min to 240 mm/min
Vertical Spindle Travel - 60 mm
- Automatic Feed & Rapid Travel on Longitudinal & Vertical Travels.
- Equipped with 3-Axis DRO.
- Vertical Head can be removed to do Horizontal Milling.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Aciera |
| Model | Type F4 |
| Condition | Used |
| Make | Aciera (Switzerland) |
| Model | Type F4 |
| Table Size | 800 mm x 250 mm |
| XYZ Travels | 400 mm x 175 mm x 450 mm |
| Manual Displacement of Table | 400 mm |
| Total Milling Length Possible | 800 mm |
| Spindle Taper | ISO 30 |
| Spindle Speeds | 50 rpm to 3400 rpm |
| Table Feed Rates | 8 mm/min to 240 mm/min |
| Vertical Spindle Travel | 60 mm |
| Other Information 1 | - Automatic Feed & Rapid Travel on Longitudinal & Vertical Travels. |
| Other Information 2 | - Equipped with 3-Axis DRO. |
| Other Information 3 | - Vertical Head can be removed to do Horizontal Milling. |
| Other Information 4 | - Machine is in excellent working condition. |
