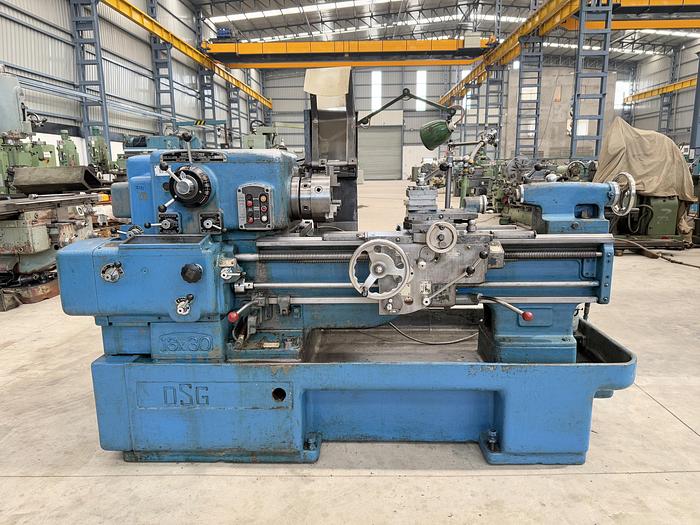

DSG England Type 13 x 30 Lathe Machine
DSG England Type 13 x 30 Lathe Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description
Dean Smith & Grace (DSG) England make Lathe Machine in excellent working condition. The model of the machine is Type 13-1 and the Maximum Length of Job is 750 mm. The technical details are as follows -
Make - Dean Smith & Grace (DSG) (England)
Model - Type 13-1
Center Height - 170 mm
Max. Length of Job - 750 mm
Max. Job Diameter over Bed - 340 mm
Max. Job Diameter over Cross-Slide - 165 mm
Bed Width - 300 mm
Spindle Speeds - 31.5 rpm to 1400 rpm
Spindle Bore - 44 mm
Chuck Diameter - 210
- Machine is in excellent working condition.
Specifications
| Manufacturer | Dean Smith & Grace (DSG) |
| Model | Type 13-1 |
| Condition | Used |
| Stock Number | 2126 |
| Make | Dean Smith & Grace (DSG) (England) |
| Model | Type 13-1 |
| Center Height | 170 mm |
| Max. Length of Job | 750 mm |
| Max. Job Diameter over Bed | 340 mm |
| Max. Job Diameter over Cross-Slide | 165 mm |
| Bed Width | 300 mm |
| Spindle Speeds | 31.5 rpm to 1400 rpm |
| Spindle Bore | 44 mm |
| Chuck Diameter | 210 |
| Other Information | - Machine is in excellent working condition. |
