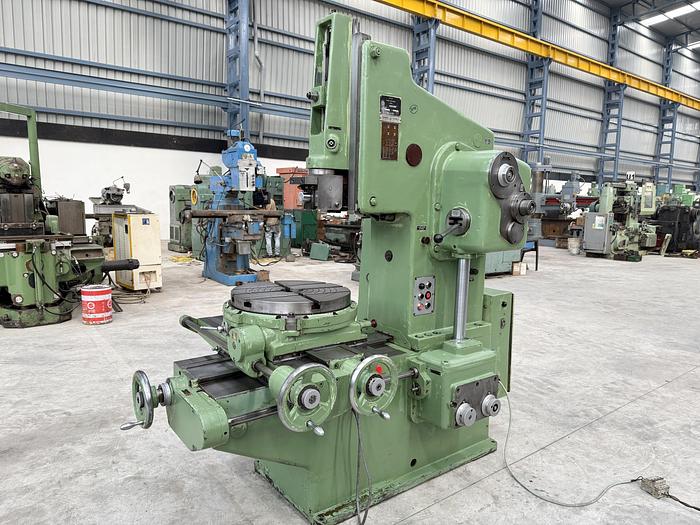

Stanko 7A420M 200 mm Stroke Slotting Machine

Stanko (Russia) make Heavy Duty Vertical Slotting Machine in excellent working condition. The model of the machine is 7A420M and the Maximum Stroke Length is 200 mm. The machine has Rapid & Feed Travels on the Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - Stanko (Russia)

Model - 7A420M

Max. Stroke Length - 200 mm

Table Diameter - 500 mm

Longitudinal Travel - 480 mm

Cross Travel - 400 mm

Height between Table to Machine Body - 325 mm

Distance between Tool-Head edge to Column - 500 mm

Max. Distance between Table Center to Column - 780 mm

Stroke Rate - 40 strokes/min to 163 strokes/min

Feed Travel Rate - 0.1 mm/stroke to 1.2 mm/stroke

Tilting Angle of Head - 0 to 5 degree

- Feed & Rapid Travel on Table Rotation and on Cross & Longitudinal Travels.

- Machine is in excellent working condition.
