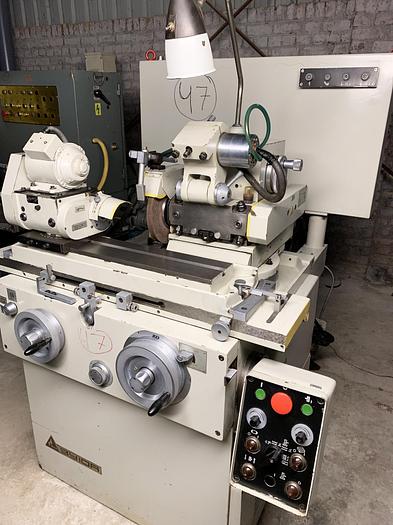

High Precision Cylindrical Grinder
High Precision Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
Excellent condition Stanko-Import 3Y10A Cylindrical Grinder located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Stanko-Import (Russia) Model - 3Y10A Center Height - 80 mm Length of Job - 250 mm Max. Diameter of Job - 160 mm Grinding Wheel Size - 250 mm Diameter x 25 mm Width Internal Grinding Spindle Speeds - 40,000 rpm to 90,000 rpm Least Step in Auto Depth Adjustment - 1.25 microns - Rapid Forward/Backward Movement of Wheel-head. - Machine is with Automatic Grinding Cycle Operation. - Table Feed Rate is step-less and movement is on lead screw. - Compressed Air Internal Grinding Spindle. - Swivel type Wheel-Head. - Machine is complete with coolant filtration unit. - Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 3Y10A |
| Condition | Used |
| Center Height | 80 mm |
| Length of Job | 250 mm |
| Max Diameter of Job | 160 mm |
| Grinding Wheel Size | 250 mm Diameter x 25 mm Width |
| Internal Grinding Spindle Speeds | 40,000 rpm to 90,000 rpm |
| Least Step in Auto Depth Adjustment | 1.25 microns |
| Other Specification 1 | Rapid Forward/Backward Movement of Wheel-head. |
| Other Specification 2 | Machine is with Automatic Grinding Cycle Operation. |
| Other Specification 3 | Table Feed Rate is step-less and movement is on lead screw. |
| Other Specification 4 | Compressed Air Internal Grinding Spindle. |
| Other Specification 5 | Swivel type Wheel-Head. |
| Other Specification 6 | Machine is complete with coolant filtration unit. |
| Other Information | Machine is in excellent working condition. |
