Lindner Germany Thread Grinding Machine
Lindner Germany Thread Grinding Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description

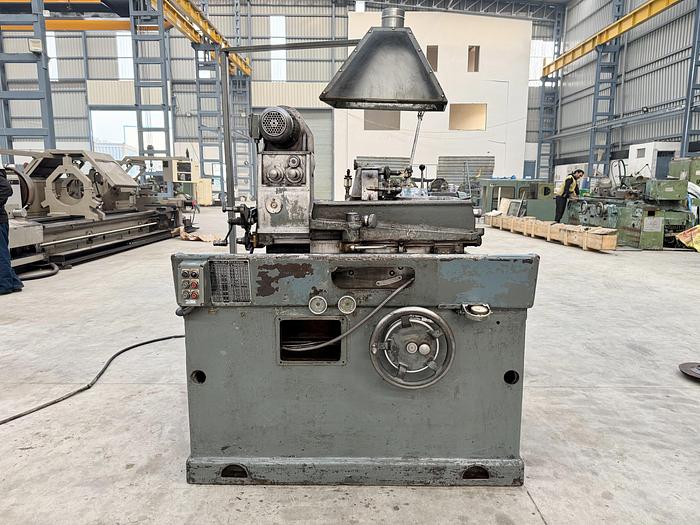

Lindner (Germany) make Thread Grinder Machine in excellent working condition. The machine is complete with its Wheel Dresser, Change Gears, spare Wheel Flanges, Coolant Tank & Pump and other many accessories. The technical details are as follows -
Make - Lindner (Germany)
Max. Grinding Length - 200 mm
Max. Distance between Centres - 400 mm
Job Diameter Range - 2 mm to 120 mm
Minimum Pitch - 0.4 mm
Maximum Pitch - 6 mm
Grinding Wheel Diameter - 350 mm
Max. Inclination of Table - +8 degree to -8 degree
- Complete with Single-Point Wheel Dresser.
- Complete with spare Wheel Flanges, Change Gears, & other accessories.
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Lindner |
| Model | NA |
| Condition | Used |
| Stock Number | 1924 |
| Make | Lindner (Germany) |
| Max. Grinding Length | 200 mm |
| Max. Distance between Centres | 400 mm |
| Job Diameter Range | 2 mm to 120 mm |
| Minimum Pitch | 0.4 mm |
| Maximum Pitch | 6 mm |
| Grinding Wheel Diameter | 350 mm |
| Max. Inclination of Table | +8 degree to -8 degree |
| Other Information 1 | - Complete with Single-Point Wheel Dresser. |
| Other Information 2 | - Complete with spare Wheel Flanges, Change Gears, & other accessories. |
| Other Information 3 | - Complete with Coolant Tank and Pump. |
| Other Information 4 | - Machine is in excellent working condition. |
