Serrmac Drilling and Milling machine
Serrmac Drilling and Milling machine
Contact us for price
Location:New Delhi, India
Description

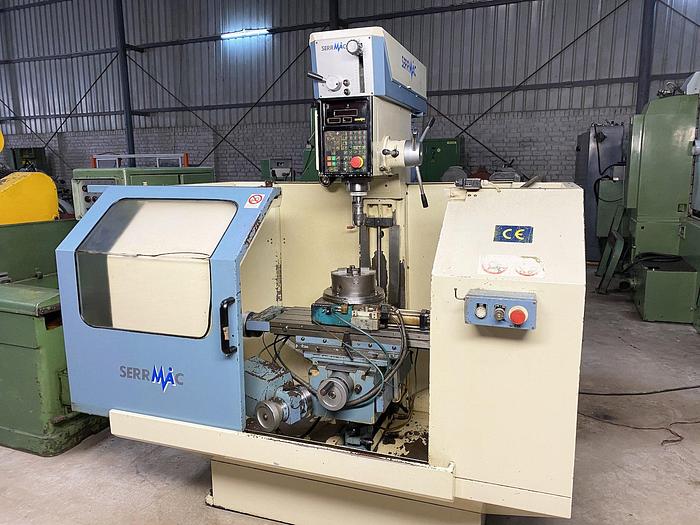

Excellent condition Serrmac TCS-40 Drilling and Milling machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Serrmac (Italy) Model - TCS-40 Table Size - 255 mm x 800 mm Drilling Capacity - 40 mm Spindle Diameter - 72 mm Spindle Travel - 155 mm Spindle Taper - MT 4 Spindle Speeds - 32 rpm to 2340 rpm Spindle Feed Rate - 0.05 mm/rev to 0.20 mm/rev - Programmable type machine which can work in fully auto-cycle mode. - Equipped with DRO in XY Axis of Table & Spindle Vertical Travel Axis. - Equipped with automatic rotating Pneumatic type Rotary Table of 190 mm Diameter. - Rapid Motorised Vertical Travel in Spindle & also in Vertical Axis in Table. - Table is a Rotating type table. - Operating Manual of the machine is available. - Machine is in excellent working condition.
Specifications
| Manufacturer | Serrmac |
| Model | TCS-40 |
| Condition | Used |
| Table Size | 255 mm x 800 mm |
| Drilling Capacity | 40 mm |
| Spindle Diameter | 72 mm |
| Spindle Travel | 155 mm |
| Spindle Taper | MT 4 |
| Spindle Speeds | 32 rpm to 2340 rpm |
| Spindle Feed Rate | 0.05 mm/rev to 0.20 mm/rev |
| Other Specification 1 | Programmable type machine which can work in fully auto-cycle mode. |
| Other Specification 2 | Equipped with DRO in XY Axis of Table & Spindle Vertical Travel Axis. |
| Other Specification 3 | Equipped with automatic rotating Pneumatic type Rotary Table of 190 mm Diameter. |
| Other Specification 4 | Rapid Motorised Vertical Travel in Spindle & also in Vertical Axis in Table. |
| Other Specification 5 | Table is a Rotating type table. |
| Other Specification 6 | Operating Manual of the machine is available. |
| Other Information | Machine is in excellent working condition. |
