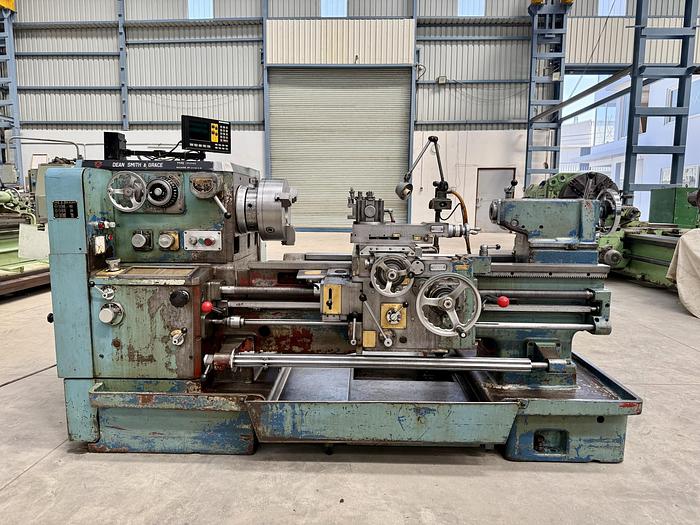

DSG England Type 1910 x 40 Heavy Duty Lathe Machine

Heavy Duty Lathe Machine made by Dean Smith & Grace (England) in excellent working condition. The model of the machine is Type 1910 and the Center Height is 250 mm with a Maximum Job Length of 1000 mm. The machine is equipped with 2-Axis DRO and is complete with Job Steady, Coolant Tank, Pump, Splash Guards, Covers and other accessories etc. The machine also has Automatic Feed Travels on the Tool-Slide (Top-Slide). The technical details are as follows -

Make - Dean Smith & Grace (England)

Model - Type 1910 x 40

Center Height - 250 mm

Max. Length of Job - 1000 mm

Max. Job Diameter over Bed - 500 mm

Max. Job Diameter over Cross-Slide - 265 mm

Max. Job Diameter in Gap - 750 mm

Spindle Speeds - 11.2 rpm to 2000 rpm

Bed Width - 445 mm

Chuck Diameter - 315 mm

Spindle Bore - 84 mm

- Equipped with 2-Axis DRO.

- Complete with Job Steady, other Accessories, Covers etc.

- Automatic Feed Travels on the Tool-Slide (Top-Slide).

- Graduations are in both Metric (mm) and Imperial (inches).

- Machine is in excellent working condition.
