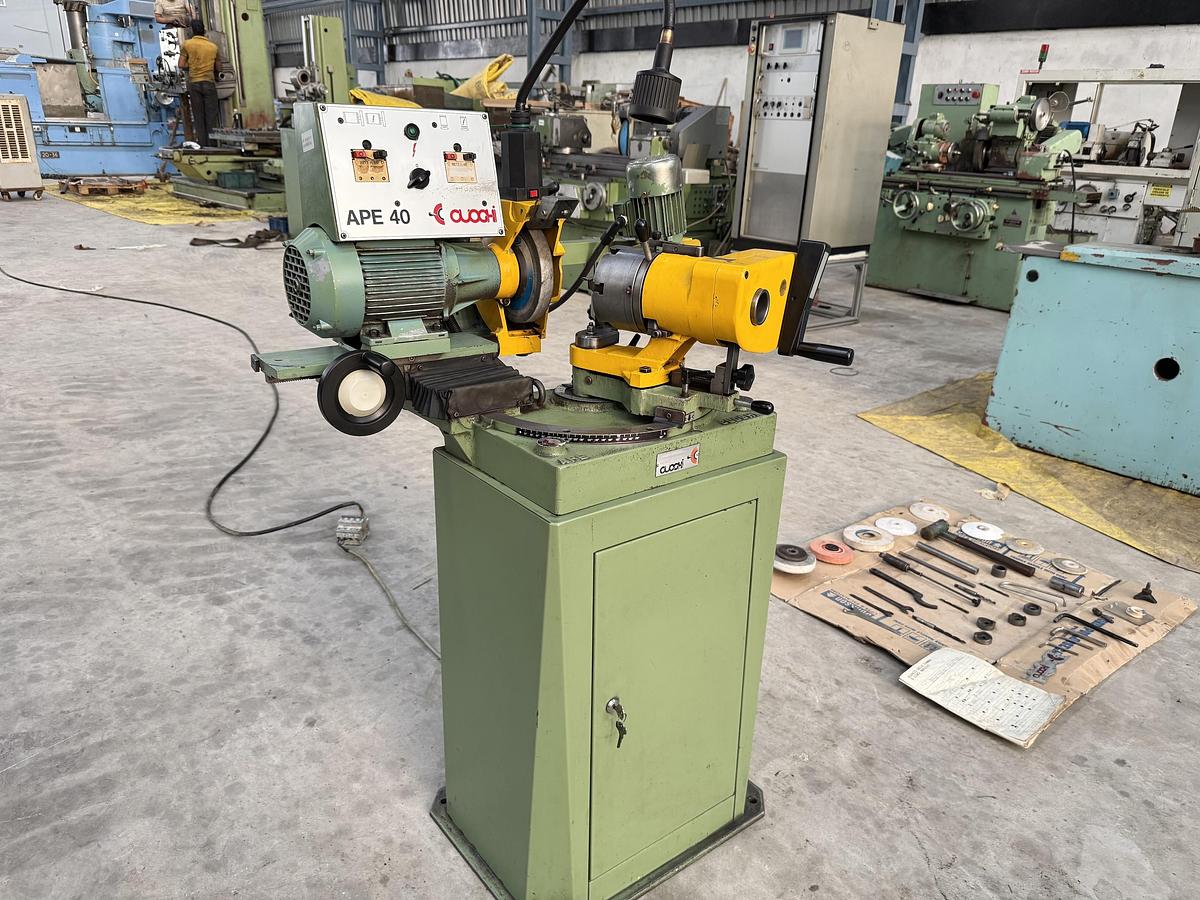

Cuoghi Italy APE-40 Tool Sharpening Machine
Cuoghi Italy APE-40 Tool Sharpening Machine
Contact us for price
Location:New Delhi, India
Description
Cuoghi (Italy) make Tool Sharpening Machine in excellent working condition. The model of the machine is APE-40 and it is suitable to sharpen twist drills with 40 degree to 180 degree tip angles, multi step drills, pilot bits, diamond drills, prismatic and self-centering drills, flat bits, center drills, countersinks, expanders, taps etc. The technical details are as follows -
Make - Cuoghi (Italy)
Model - APE-40
Diameter Range - 2 mm to 40 mm
Min. & Max. Drill Angle - 40 degree to 180 degree
Tool Flutes - 1 to 12
Grinding Wheel Size - Diameter 200 mm x 32 mm Width
Chuck Diameter - 130 mm (6-jaw type)
- Machine is equipped with its Web Thinning Attachment.
- Complete with spare Cams, Wheels, Flanges, & many other accessories.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Cuoghi |
| Model | APE-40 |
| Condition | Used |
| Stock Number | 2299 |
| Make | Cuoghi (Italy) |
| Model | APE-40 |
| Diameter Range | 2 mm to 40 mm |
| Min. & Max. Drill Angle | 40 degree to 180 degree |
| Tool Flutes | 1 to 12 |
| Grinding Wheel Size | Diameter 200 mm x 32 mm Width |
| Chuck Diameter | 130 mm (6-jaw type) |
| Other Information 1 | - Machine is equipped with its Web Thinning Attachment. |
| Other Information 2 | - Complete with spare Cams, Wheels, Flanges, & many other accessories. |
| Other Information 3 | - Operating Manual & Electrical Drawings are available. |
| Other Information 4 | - Machine is in excellent working condition. |
