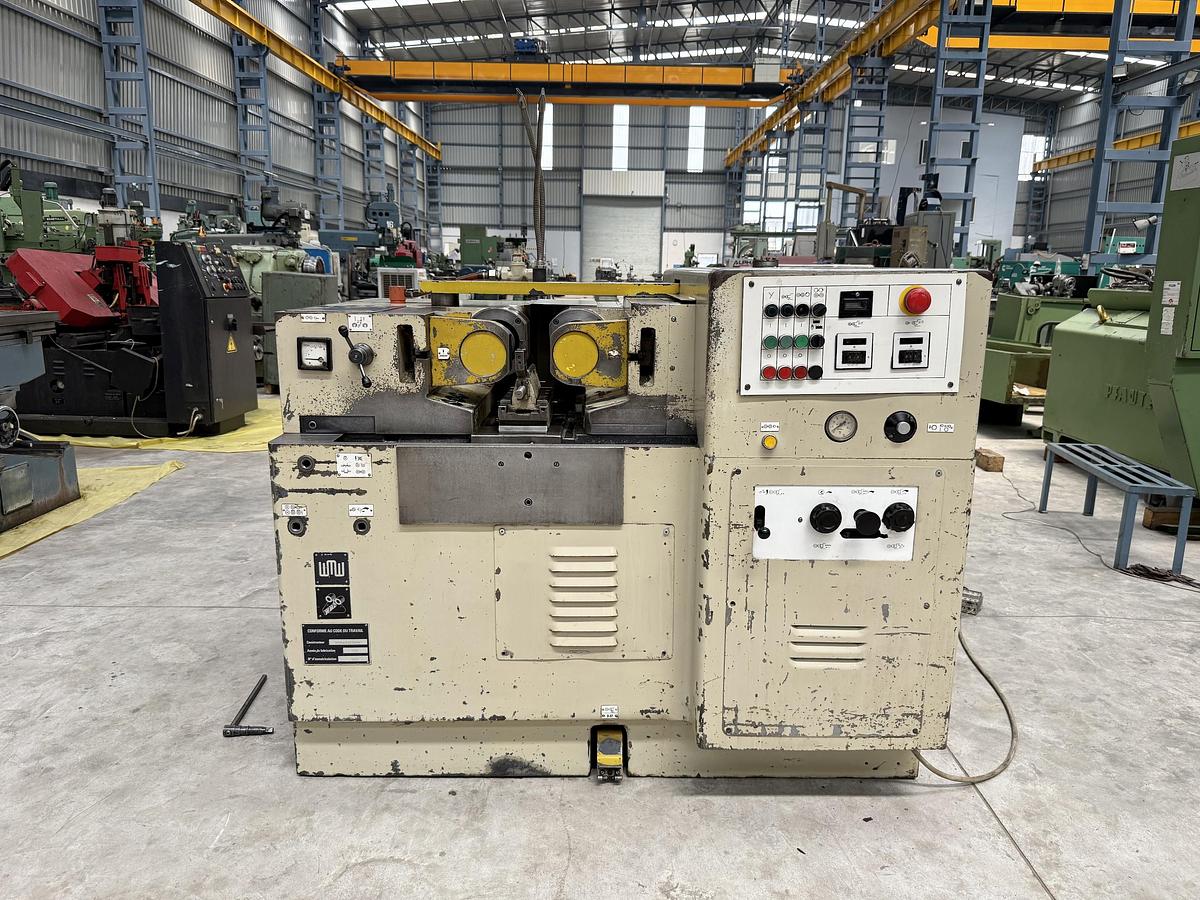

WMW UPW 25.1 Thread Rolling Machine

Description

WMW (Germany) make Hydraulic Thread Rolling Machine in excellent working condition. The model of the machine is UPW 25.1 and the Maximum Rolling Force of the machine is 25 Tons. The technical details are as follows -

Make - WMW (Germany)

Model - UPW 25.1

Max. Rolling Force - 25 Tons

Job Diameter Range - 10 mm to 100 mm

Maximum Pitch - 8 mm

Thread Roll Size - Diameter 230 mm x 180 mm Width

Max. Thread Length - 8000 mm

Max. Thread Length (in Plunge Method) - 180 mm

Spindle Speeds - 20 rpm to 90 rpm

Spindle Diameter (ID of Thread Roll) - 69.85 mm

Distance between Centers of Spindles - 150 mm to 325 mm

- Machine can work in Auto-Cycle as well as Manual mode.

- Machine is in excellent working condition.

Specifications

Manufacturer	WMW
Model	UPW 25.1
Condition	Used
Stock Number	1847
Make	WMW (Germany)
Model	UPW 25.1
Max. Rolling Force	25 Tons
Job Diameter Range	10 mm to 100 mm
Maximum Pitch	8 mm
Thread Roll Size	Diameter 230 mm x 180 mm Width
Max. Thread Length	8000 mm
Max. Thread Length (in Plunge Method)	180 mm
Spindle Speeds	20 rpm to 90 rpm
Spindle Diameter (ID of Thread Roll)	69.85 mm
Distance between Centers of Spindles	150 mm to 325 mm
Other Information 1	- Machine can work in Auto-Cycle as well as Manual mode.
Other Information 2	- Machine is in excellent working condition.
