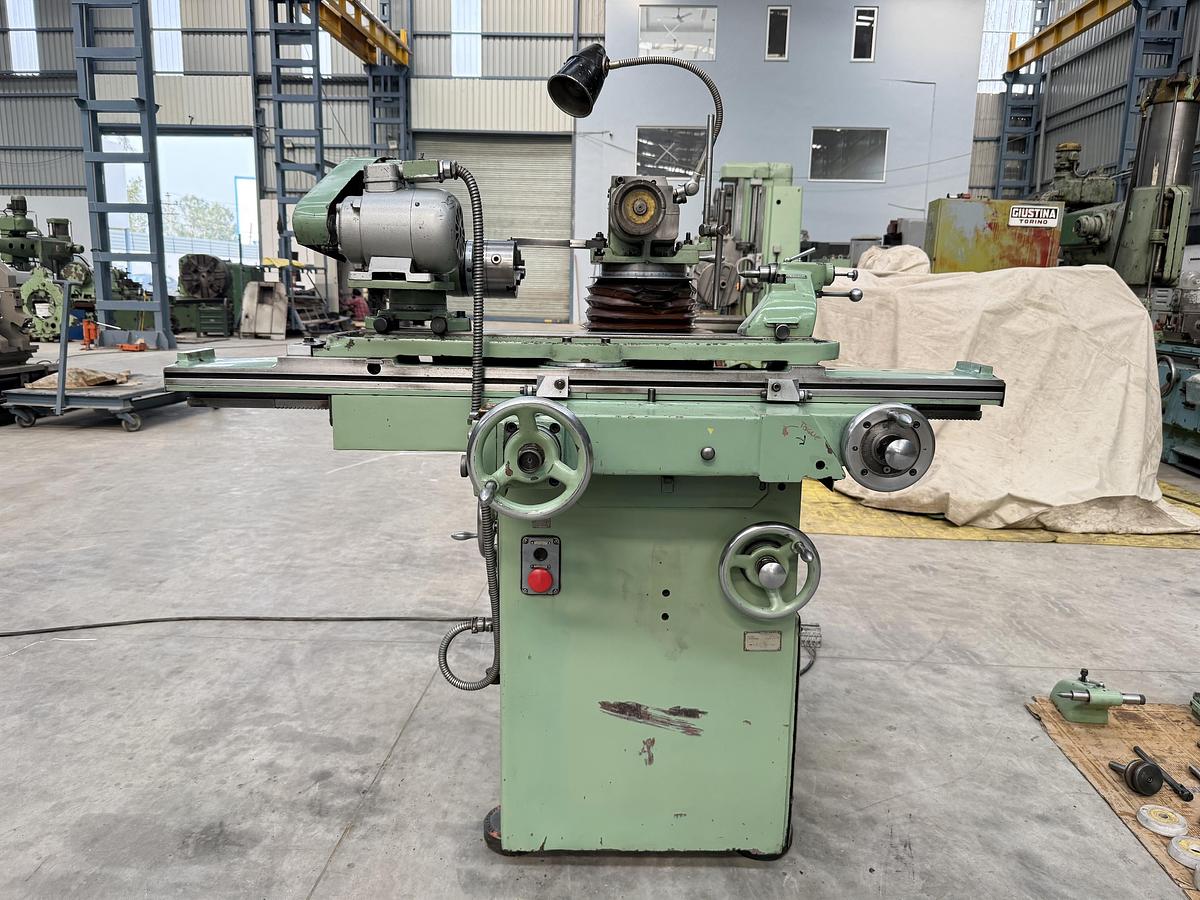

Stanko Russia Universal Tool & Cutter Grinder with Cylindrical Grinding Attachment
Stanko Russia Universal Tool & Cutter Grinder with Cylindrical Grinding Attachment
Contact us for price
Location:New Delhi, India
Description
Universal Tool & Cutter Grinding Machine made by Stanko (Russia) in excellent working condition. The machine is a Wet-Type Grinding Machine and is complete with its Cylindrical Grinding Attachment, pair of Tail-Stock, ElectroMagnetic Surface, and many other accessories. The model of the machine is 3B642 and the Table Size is 145 mm x 900 mm. The machine has an inbuilt Coolant Tank and Pump. The technical details are as follows -
Make - Stanko (Russia)
Model - 3B642
Table Size - 145 mm x 900 mm
Center Height - 135 mm
Max. Swing Diameter of Job - 260 mm
Max. Job Length between Work-Head Chuck & Center - 500 mm
Longitudinal Travel of Table - 450 mm
Cross Travel of Table - 230 mm
Vertical Travel of Grinding Spindle - 220 mm
Max. Grinding Wheel Size - 200 mm
Grinding Wheel Speeds - 2440 rpm to 6300 rpm
Work-Head Speeds - 150 rpm / 212 rpm / 300 rpm
Least Count of Cross Travel - 2.5 Microns (0.0025 mm)
Least Count of Vertical Travel - 5 Microns (0.005 mm)
Max. Height between Table Top to Wheel Center - 285 mm
Min. Height between Table Top to Wheel Center - 60 mm
- Suitable for Wet Grinding as well as Dry Grinding.
- Complete with Cylindrical Grinding Attachment, Pair of Tail-Stock, Work-Head etc.
- Complete with Electro-magnetic Surface Plate, Rotary Chuck, & many spare wheels.
- Complete with Quills, many Wheel dressers, Covers, & many other accessories.
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 3B642 |
| Condition | Used |
| Stock Number | 2323 |
| Make | Stanko (Russia) |
| Model | 3B642 |
| Table Size | 145 mm x 900 mm |
| Center Height | 135 mm |
| Max. Swing Diameter of Job | 260 mm |
| Max. Job Length between Work-Head Chuck & Center | 500 mm |
| Longitudinal Travel of Table | 450 mm |
| Cross Travel of Table | 230 mm |
| Vertical Travel of Grinding Spindle | 220 mm |
| Max. Grinding Wheel Size | 200 mm |
| Grinding Wheel Speeds | 2440 rpm to 6300 rpm |
| Work-Head Speeds | 150 rpm / 212 rpm / 300 rpm |
| Least Count of Cross Travel | 2.5 Microns (0.0025 mm) |
| Least Count of Vertical Travel | 5 Microns (0.005 mm) |
| Max. Height between Table Top to Wheel Center | 285 mm |
| Min. Height between Table Top to Wheel Center | 60 mm |
| Other Information 1 | - Suitable for Wet Grinding as well as Dry Grinding. |
| Other Information 2 | - Complete with Cylindrical Grinding Attachment, Pair of Tail-Stock, Work-Head etc. |
| Other Information 3 | - Complete with Electro-magnetic Surface Plate, Rotary Chuck, & many spare wheels. |
| Other Information 4 | - Complete with Quills, many Wheel dressers, Covers, & many other accessories. |
| Other Information 5 | - Complete with Coolant Tank and Pump. |
| Other Information 6 | - Machine is in excellent working condition. |
