Dean Smith & Grace Type 1609 Heavy Duty Lathe Machine
Dean Smith & Grace Type 1609 Heavy Duty Lathe Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description

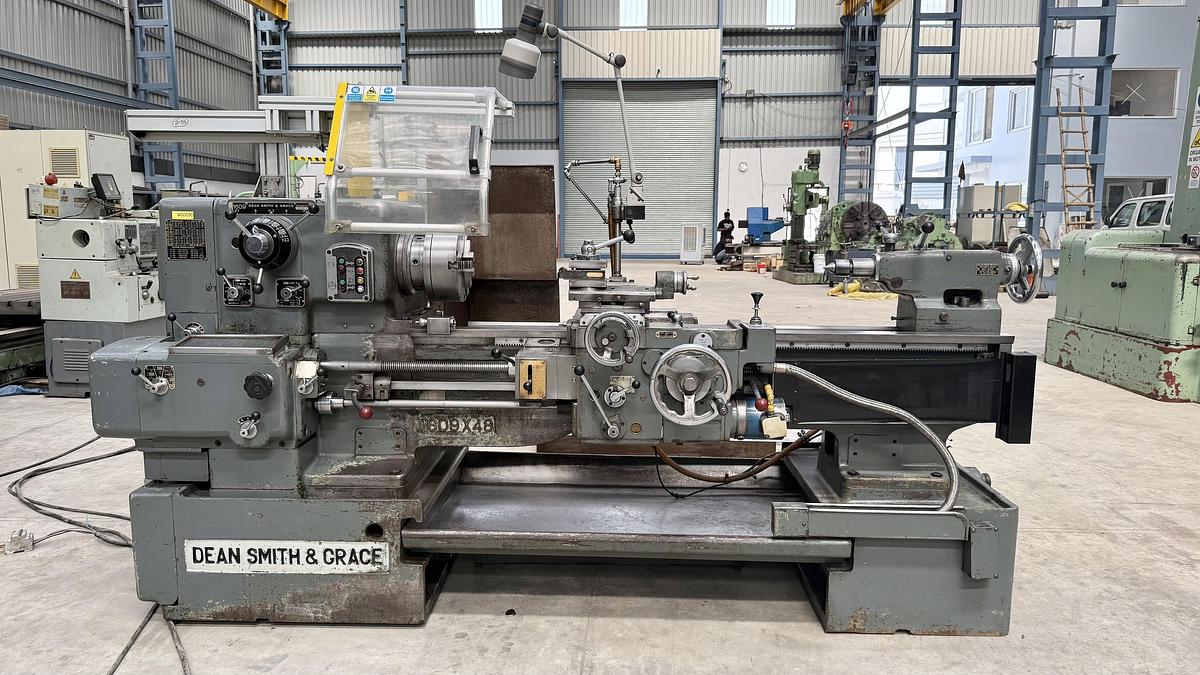

Dean Smith & Grace (England) make Heavy Duty Lathe Machine in excellent working condition. The model of the machine is Type 1609 x 48 and the Maximum Length of Job is 1220 mm. The technical details are as follows -
Make - Dean Smith & Grace (England)
Model - Type 1609 x 48
Center Height - 215 mm
Max. Length of Job - 1220 mm
Max. Job Diameter over Bed - 430 mm
Max. Job Diameter over Cross-Slide - 225 mm
Spindle Speeds - 20 rpm to 1600 rpm
Bed Width - 340 mm
Chuck Diameter - 250 mm
Spindle Bore - 52 mm
- Motorised Rapid Travels on Carriage & Cross-Slide Movements.
- Graduations are in both Metric (mm) and Imperial (inches).
- Machine is in excellent working condition.
Specifications
| Manufacturer | Dean Smith & Grace |
| Model | Type 1609 x 48 |
| Condition | Used |
| Stock Number | 2156 |
| Make | Dean Smith & Grace (England) |
| Model | Type 1609 x 48 |
| Center Height | 215 mm |
| Max. Length of Job | 1220 mm |
| Max. Job Diameter over Bed | 430 mm |
| Max. Job Diameter over Cross-Slide | 225 mm |
| Spindle Speeds | 20 rpm to 1600 rpm |
| Bed Width | 340 mm |
| Chuck Diameter | 250 mm |
| Spindle Bore | 52 mm |
| Other Information 1 | - Motorised Rapid Travels on Carriage & Cross-Slide Movements. |
| Other Information 2 | - Graduations are in both Metric (mm) and Imperial (inches). |
| Other Information 3 | - Machine is in excellent working condition. |
