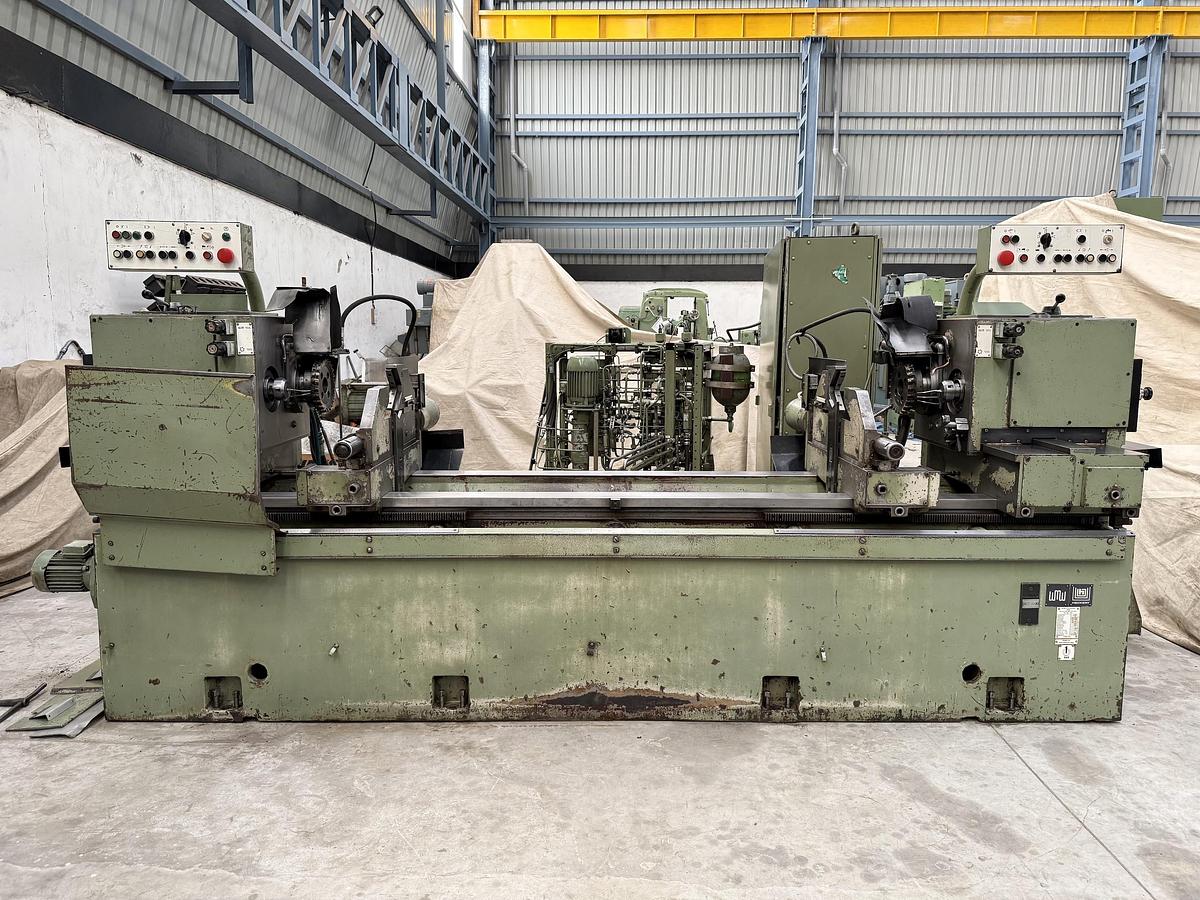

WMW Heckert FZWD 160 x 2200 mm Facing and Centering Machine

WMW Heckert FZWD 160 x 2200 mm Facing and Centering Machine

Contact us for price

Location:New Delhi, India

Description

WMW Heckert (Germany) make Facing & Centering Machine in excellent working condition. The model of the machine is FZWD 160 and the Maximum Length of Job is 2200 mm. It is a 4-Head Type machine which has separate & different heads for Facing & Centering Operations. The technical details are as follows -


Make - WMW - Heckert (Germany)

Model - FZWD 160

Max. Diameter of Job - 160 mm

Max. Length of Job - 2200 mm

Min. Diameter of Job - 20 mm

Min. Length of Job - 140 mm

Max. Diameter of Milling Cutter - 205 mm

Speeds of Facing Cutter - 56 rpm to 280 rpm

Speeds of Centering Cutter - 560 rpm to 1400 rpm

Serial Number of Machine - 44,162

- It is a 4-Head type Facing & Centering Machine.

- Machine is complete with a chip conveyor, coolant tank & pump.

- The machine can work in complete Auto-Cycle Mode as well as in Manual Mode.

- Machine is in excellent working condition.

Specifications

ManufacturerWMW - Heckert
ModelFZWD 160
ConditionUsed
Stock Number2228
MakeWMW - Heckert (Germany)
ModelFZWD 160
Max. Diameter of Job160 mm
Max. Length of Job2200 mm
Min. Diameter of Job20 mm
Min. Length of Job140 mm
Max. Diameter of Milling Cutter205 mm
Speeds of Facing Cutter56 rpm to 280 rpm
Speeds of Centering Cutter560 rpm to 1400 rpm
Serial Number of Machine44,162
Other Information 1- It is a 4-Head type Facing & Centering Machine.
Other Information 2- Machine is complete with a chip conveyor, coolant tank & pump.
Other Information 3- The machine can work in complete Auto-Cycle Mode as well as in Manual Mode.
Other Information 4- Machine is in excellent working condition.
