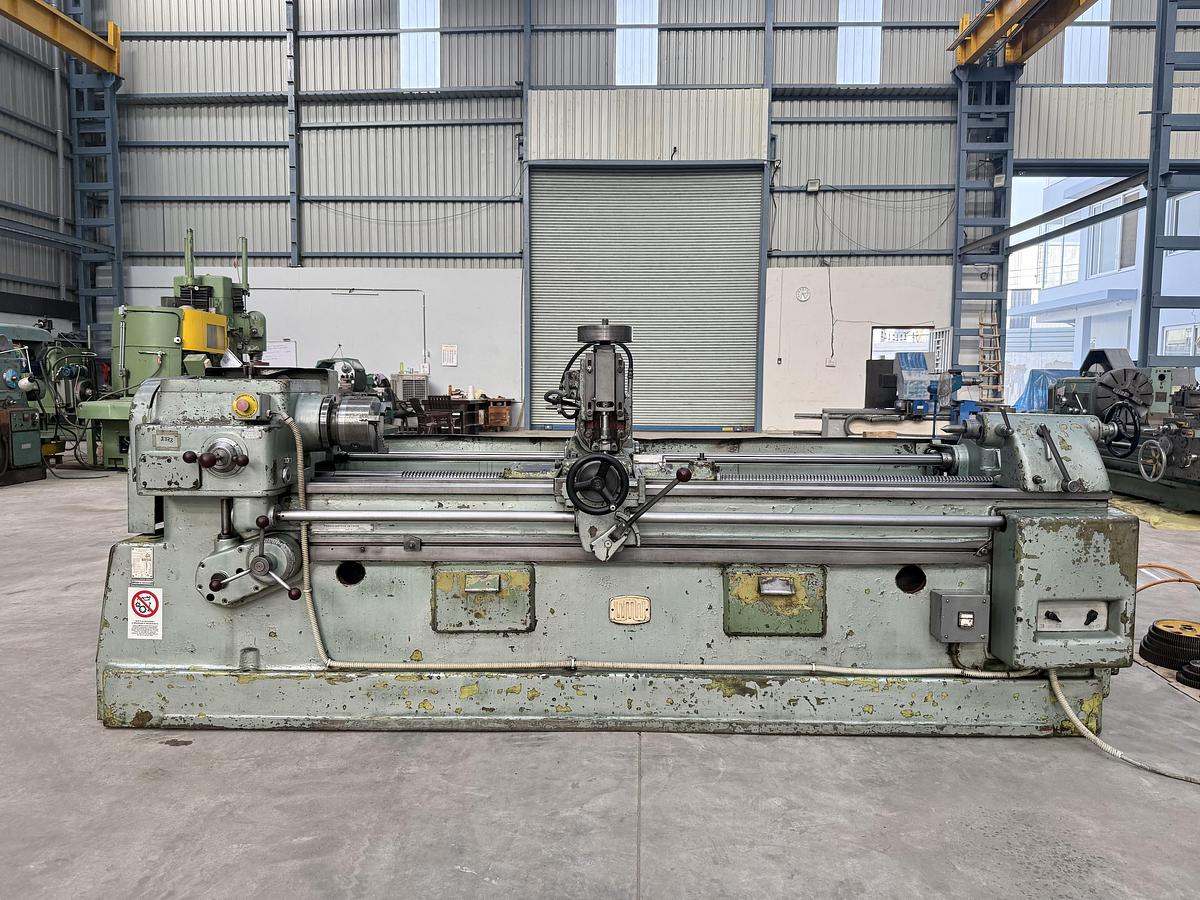

WMW Germany GFL-400 x 2000 mm Thread Milling Machine

Description

WMW (Germany) make Worm & Thread Milling Machine in excellent working condition. The model of the machine is GFL-400 and the Max. Length of Job is 2000 mm. The machine is capable of Gear Hobbing, Spline Hobbing, Spline Milling, Thread Milling & Worm Milling Operations. This machine also has a Differential Gearbox and hence can do Helical Gear Teeth Cutting as well. The technical details are as follows -

Make - WMW (Germany)

Model - GFL-400

Center Height - 205 mm

Max. Length of Job - 2000 mm

Max. Job Diameter over Cross-Slide - 200 mm

Max. Swing Diameter over Bed - 400 mm

Cutter Speeds - 55 rpm to 250 rpm

Max. Cutter Diameter - 100 mm

Spindle Bore - 80 mm

- Capable of doing Thread Milling, Worm Milling & Spline Milling.

- Capable of doing Gear Hobbing & Spline Hobbing as well.

- Complete with Change Gears, Index Plates, Arbours, & other accessories.

- Machine is in excellent working condition.

Specifications

Manufacturer	WMW
Model	GFL-400
Condition	Used
Stock Number	2373
Make	WMW (Germany)
Model	GFL-400
Center Height	205 mm
Max. Length of Job	2000 mm
Max. Job Diameter over Cross-Slide	200 mm
Max. Swing Diameter over Bed	400 mm
Cutter Speeds	55 rpm to 250 rpm
Max. Cutter Diameter	100 mm
Spindle Bore	80 mm
Other Information 1	- Capable of doing Thread Milling, Worm Milling & Spline Milling.
Other Information 2	- Capable of doing Gear Hobbing & Spline Hobbing as well.
Other Information 3	- Complete with Change Gears, Index Plates, Arbours, & other accessories.
Other Information 4	- Machine is in excellent working condition.
