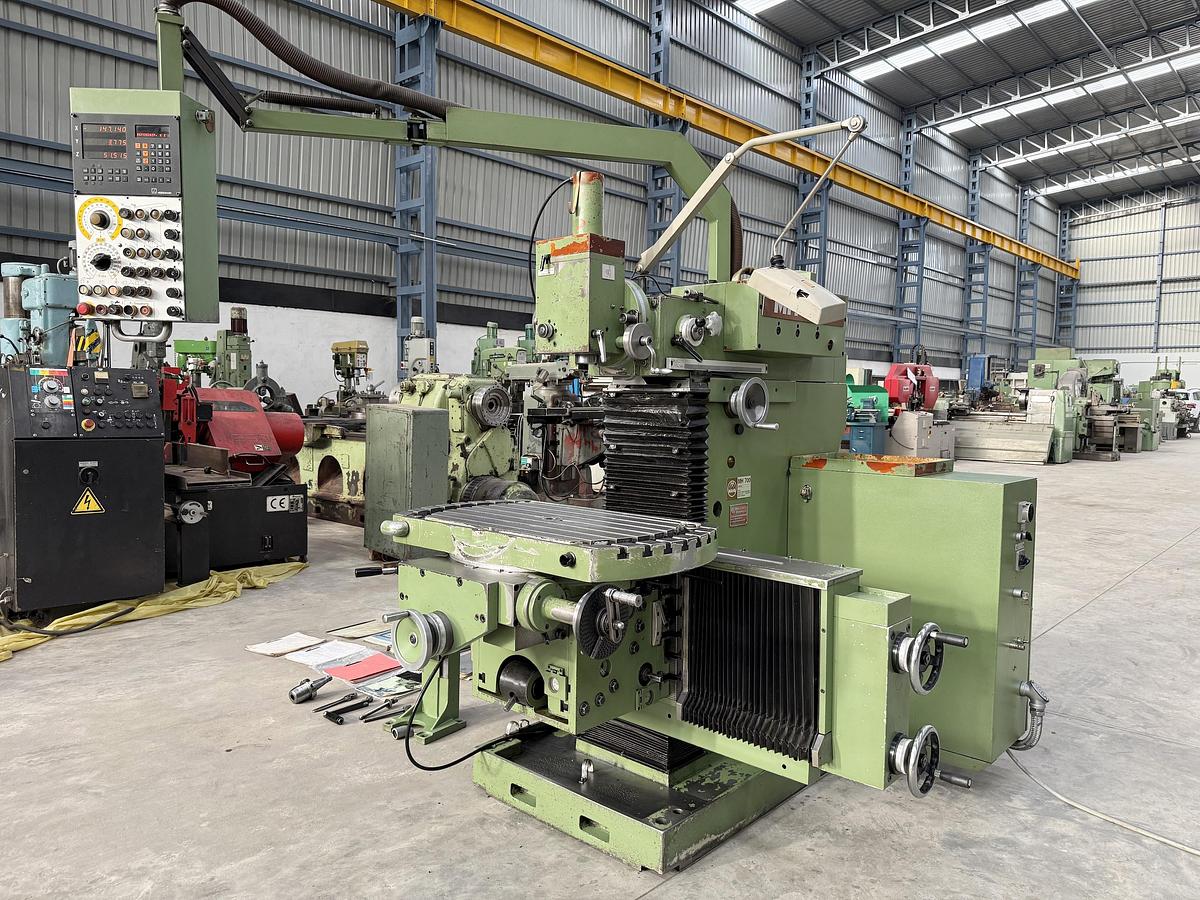

Maho MH-700 Universal Tool Room Milling Machine

Maho (Germany) make Universal Tool and Diesinking Milling Machine in excellent working condition. The model of the machine is MH-700 and the Table Size is 900 mm x 500 mm. It is a very versatile machine suitable for Horizontal Milling, Vertical Milling, Angular Milling, and Boring operations. The Table of the machine can be rotated through 360 degrees and can be swivelled & inclined to each side by 30 degrees. Therefore, it is very ideal for many types of jobs as machining of several component faces can be machined easily without intermediate resetting. The Vertical Head of the machine is a Parking Head type which can be removed easily to do Horizontal Milling. The technical details are as follows -

Make - Maho (Germany)

Model - MH 700

Table Size - 900 mm x 500 mm

XYZ Travel - 600 mm x 400 mm x 400 mm

Spindle Speeds - 40 rpm to 2000 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 0.05 mm/min to 500 mm/min

Vertical Spindle Travel - 80 mm

Horizontal Spindle Travel - 80 mm

Cross Travel of Table - 200 mm (Manual)

Vertical Clamping Area - 450 mm x 375 mm

Table Rotating Range - 360 degrees

Table Swivel of Either Side - +30 degree to -30 degree

Table Incline to Front & Rear Side - +30 degree to -30 degree

- Equipped with 3-Axis DRO.

- Versatile machine for many different types of milling & boring jobs.

- The Parking-type Vertical Milling Head can be easily removed for Horizontal Milling.

- Complete with all Operating Manuals, Electrical Drawings etc.

- The Universal type Table can be removed to clamp the job directly on the Vertical Surface.

- Machine is in excellent working condition.
