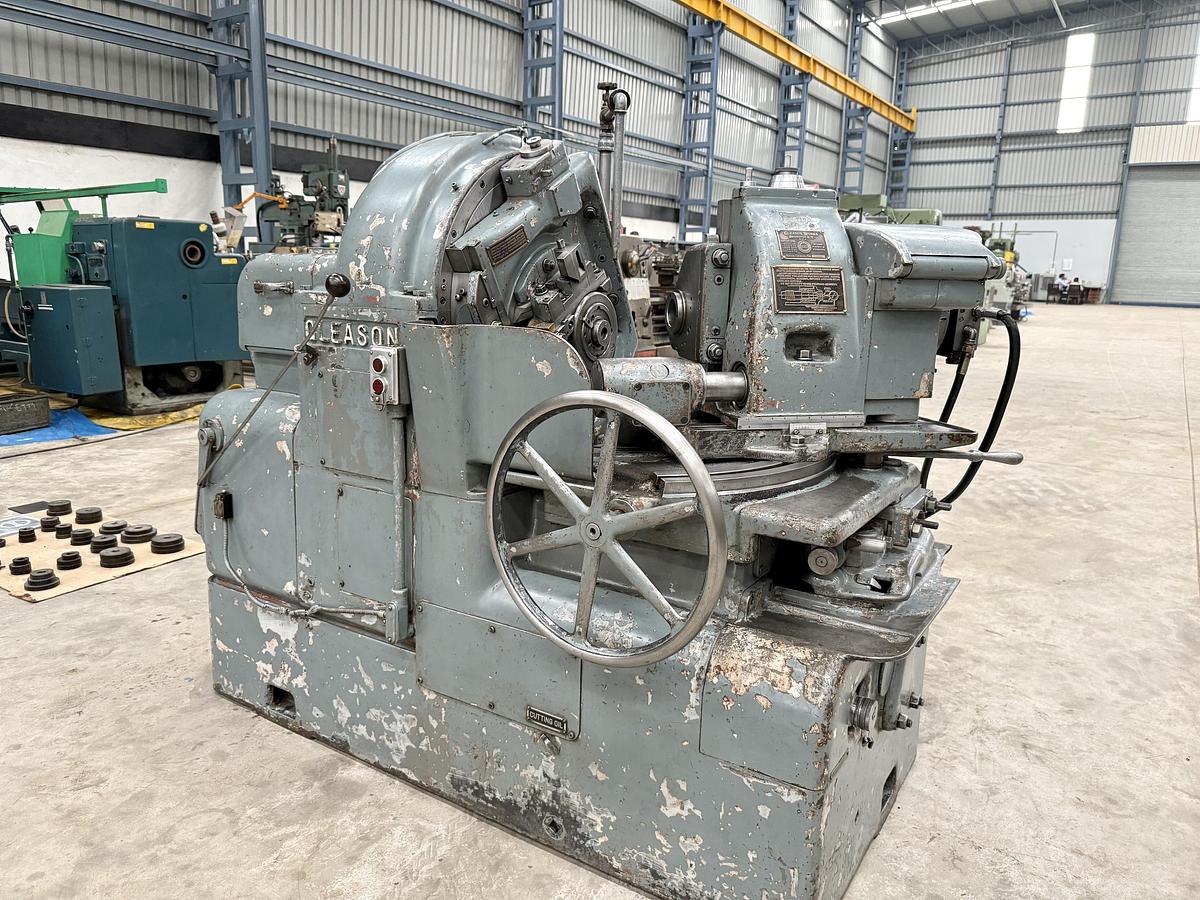

Gleason No. 7A Spiral Bevel & Hypoid Generator Machine
Gleason No. 7A Spiral Bevel & Hypoid Generator Machine
Contact us for price
Location:New Delhi, India
Description
Gleason No. 7A Spiral Bevel & Hypoid Generator Machine in excellent working condition. It is a Double-Cam machine which can work in Generation Mode and as well as in Format Mode. The machine is complete with its Change Gears, Operating Manual, etc. The technical details are as follows -
Make - Gleason (USA)
Model - No. 7A
Maximum Pitch - 4 DP
Longest Cone Distance - 4.25 inches
Pitch Angle - 5 degree 42 min to 84 degree 18 min
Maximum Face - 1.25 inches
Maximum Full Depth - 0.5 inches
Number of Teeth - 5 to 200
Extreme Ratio - 10 to 1
- The machine can work in Generation Mode & also in Format Mode.
- The machine can cut both Crown-wheel & Pinion Gears.
- Complete with its Operating Manual & Change Gears.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Gleason |
| Model | No. 7A |
| Condition | Used |
| Stock Number | 2149 |
| Make | Gleason (USA) |
| Model | No. 7A |
| Maximum Pitch | 4 DP |
| Longest Cone Distance | 4.25 inches |
| Pitch Angle | 5 degree 42 min to 84 degree 18 min |
| Maximum Face | 1.25 inches |
| Maximum Full Depth | 0.5 inches |
| Number of Teeth | 5 to 200 |
| Extreme Ratio | 10 to 1 |
| Other Information 1 | - The machine can work in Generation Mode & also in Format Mode. |
| Other Information 2 | - The machine can cut both Crown-wheel & Pinion Gears. |
| Other Information 3 | - Complete with its Operating Manual & Change Gears. |
| Other Information 4 | - Machine is in excellent working condition. |
