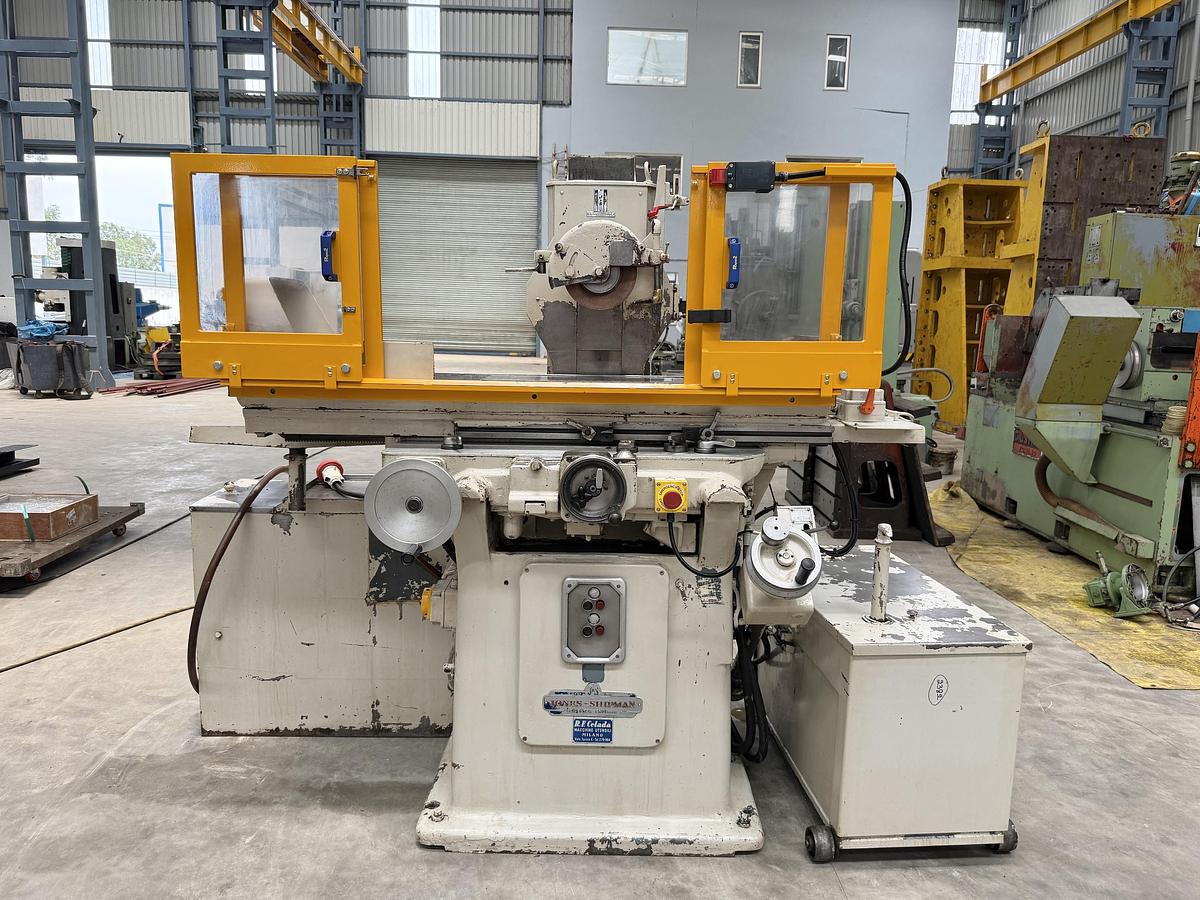

Jones & Shipman 1400 High Precision Surface Grinder

Jones & Shipman (England) make High-Precision Surface Grinding Machine in excellent working condition. The model of the machine is 1400 and the Grinding Capacity is 204 mm x 610 mm. It is a High-Precision machine having a Least Count of 1 Micron (0.001 mm) on the Vertical Travels. The machine is complete with an Electro-Magnet and also a Coolant Tank and Coolant Pump. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1400

Grinding Capacity - 204 mm x 610 mm

Grinding Wheel Size - Diameter 204 mm x 20 mm Width

Max. Height between Magnet Top to Wheel Center - 275 mm

Current Electro-Magnet Size - 200 mm x 500 mm

Least Count of Vertical Travel - 1 Micron (0.001 mm)

Least Count of Cross Travel - 2.5 Micron (0.0025 mm)

Graduations on Dials - Metric (in mm)

- With Motorised Vertical Travel of the Wheel-Head.

- Micro-Feed Travels for both Cross Travels and Vertical Travels.

- Complete with Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
