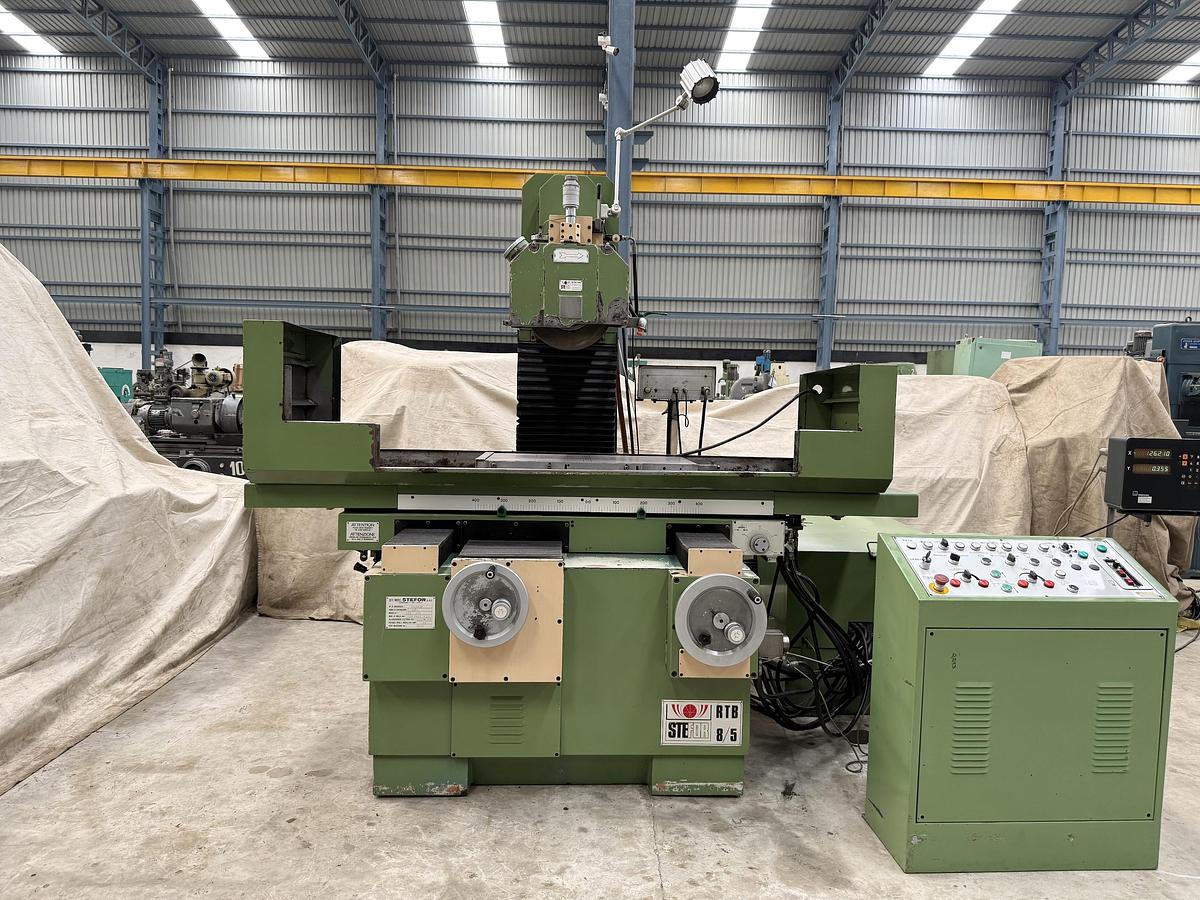

Stefor Italy 400 mm x 800 mm Surface Grinding Machine

Stefor (Italy) make High-Precision Surface Grinding Machine in excellent working condition. The model of the machine is the RTB 8/5 and the Magnet Size is 400 mm x 800 mm. The machine has Micro-Feed Travels on both the Cross Travels and on the Vertical Travels with a Least Count of 2 Microns (0.002 mm). It is an Extra-Height machine having Maximum Height between Magnet Top to Wheel Center of 580 mm. The machine is complete with 2-Axis DRO, Hydraulic Wheel Dresser, Coolant Filtration Unit, Coolant Tank, Pump, Spare Wheel Flanges, Spare Grinding Wheels, Splash Guards, etc. It is a Fully Automatic type machine with features of Automatic Depth Adjustment "Auto-Cut". The technical details are as follows -

Make - Stefor (Italy)

Model - RTB 8/5

Magnet Size - 400 mm x 800 mm

Longitudinal Travels - 900 mm

Cross Travels - 500 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Max. Height between Magnet Top to Wheel Center - 580 mm

Least Count of Vertical Travel - 2 Microns (0.002 mm)

Least Count of Cross Travel - 2 Microns (0.002 mm)

- Equipped with Heidenhain make 2-Axis DRO.

- Equipped with a Wheel-Top Mounted Hydraulic Wheel Dresser.

- Features of Automatic Depth Adjustment, Automatic Plunge Grinding, etc.

- Micro-Feed Adjustments in Vertical Travels and also in Cross Travels.

- Complete with spare Wheel Flange, spare Grinding Wheels, splash guards etc.

- Complete with Coolant Filtration Unit, Coolant tank & Coolant Pump.

- Machine is in excellent working condition.
