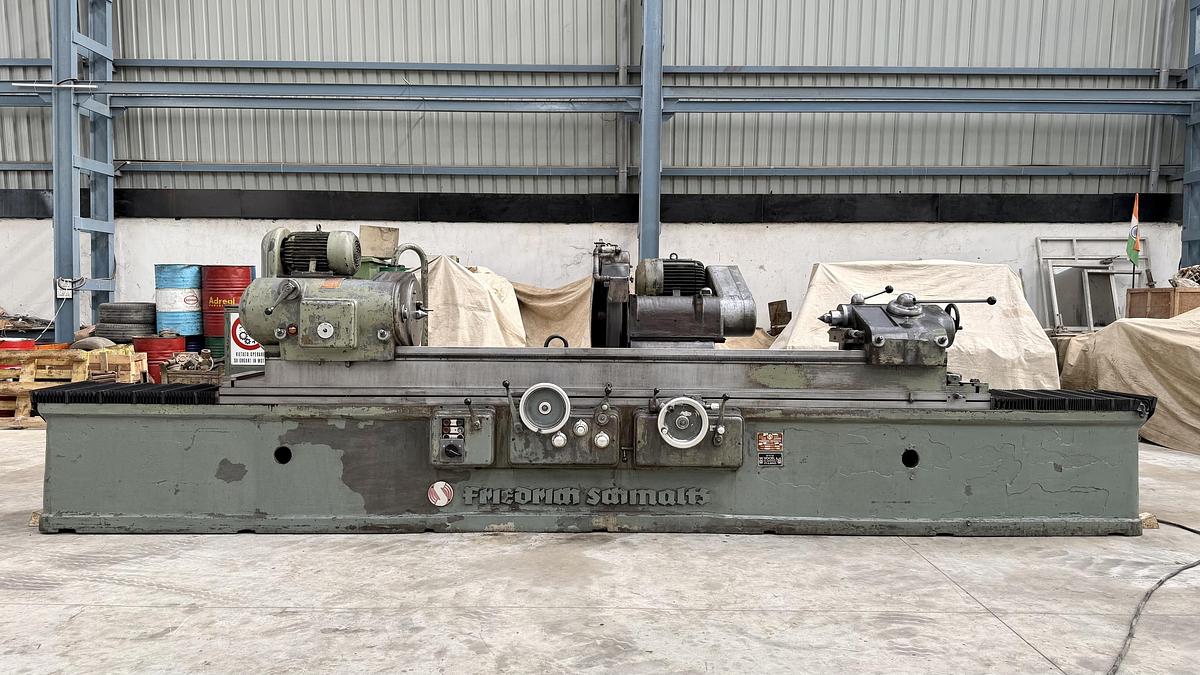

Friedrich Schmaltz R6 / 2500 Heavy Duty Cylindrical Grinder

Friedrich Schmaltz (Germany) make Heavy-Duty Cylindrical Grinding Machine in excellent working condition. The model of this machine is R6 / 2500 and the Maximum Job Diameter is 600 mm and Maximum Length of Job is 2500 mm. The Least Count of the Machine is 5 Microns (0.005 mm) on the Job Diameter. The machine is complete with Wheel Dresser, spare Grinding Wheels & Flanges,  Coolant Filtration Unit, Coolant Tank, Pump, Splash Guards, Operating Manual, Electrical Drawings etc. The technical details are as follows -

Make - Friedrich Schmaltz (Germany)

Model - R6 / 2500

Center Height - 305 mm

Max. Diameter of Job - 600 mm

Max. Length of Job - 2500 mm

Grinding Wheel Size - Diameter 750 mm x 100 mm Width

Least Count on Job Diameter - 5 Micron (0.005 mm)

Work-Head Speed - 12 rpm to 180 rpm

Max. Weight of Job - 2500 kg

- Features like Delay, Automatic Depth Adjustment "Auto-Cut" etc.

- With Wheel Dresser, spare Grinding Wheels & Flanges, Splash Guards, etc.

- With Magnetic type Coolant Filtration Unit, Coolant Tank, and Coolant Pump.

- Operating Manual, Electrical Drawings etc. are available.

- Machine is in excellent working condition.
