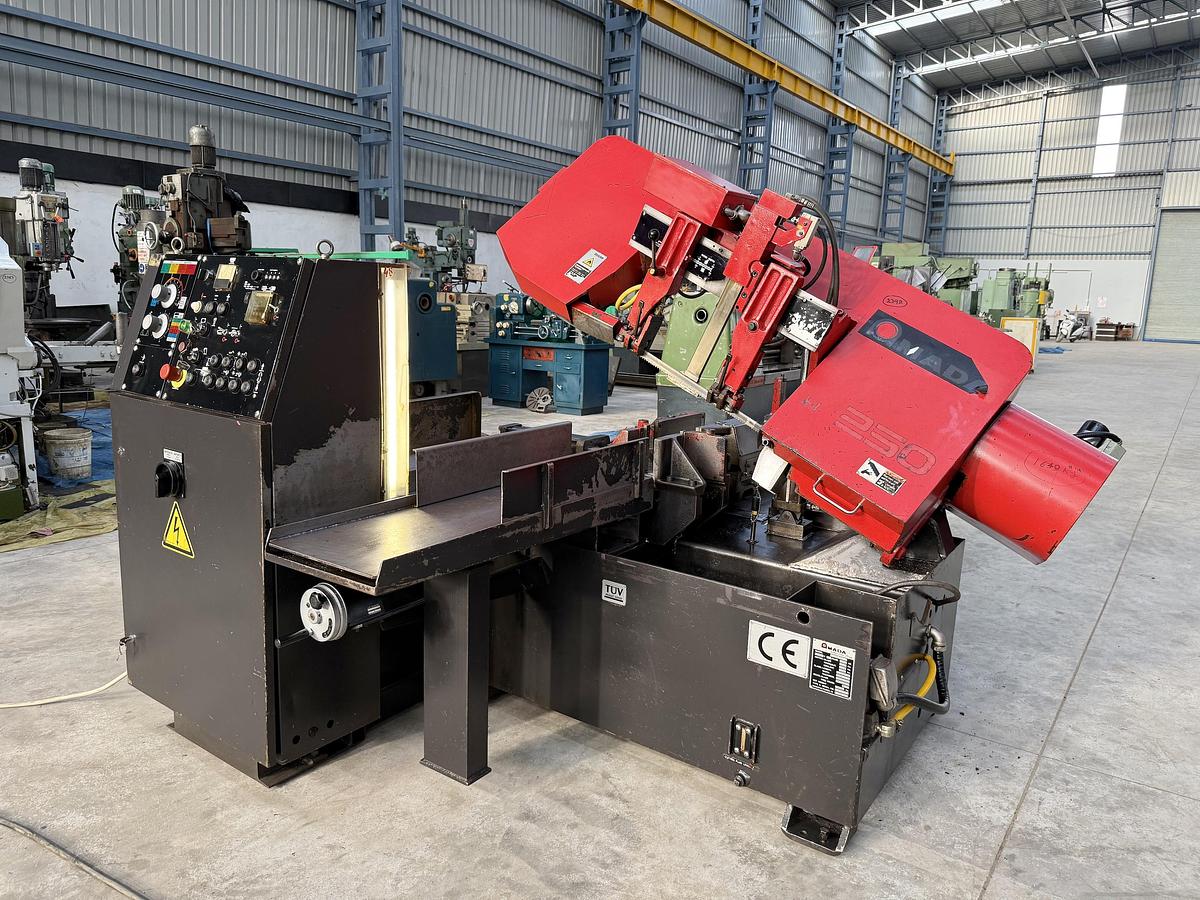

Amada HA-250 Automatic Bandsaw Machine
Amada HA-250 Automatic Bandsaw Machine
Contact us for price
Location:New Delhi, India
Description
Amada (Japan) make Fully Automatic Bandsaw Machine in excellent working condition. The model of the machine is HA-250 and the Cutting Capacity for Round is 250 mm Diameter. The machine can work in complete Full-Automatic as well as in Manual Model. The technical details are as follows -
Make - Amada (Japan)
Model - HA-250
Cutting Capacity (for Round) - 250 mm
Cutting Capacity (for Rectangle) - 300 mm x 250 mm
Max. Travel for Auto-Feed Vice - 400 mm (single time)
Max. No. of Travels for Auto-Feed Vice - 9 Times
Blade Size - Length 3505 mm x Width 25 mm x Thickness 0.95 mm
Blade Speeds - 20 m/min to 80 m/min
Blade Motor Power - 2.2 kW
Type - Fully Automatic ; equipped with PLC.
- Can be used in Full Automatic Mode, Semi-Automatic Mode and in Manual Mode as well.
- Operating Manual, Electrical Drawing, Hydraulic Drawings etc. are available.
- Complete with Coolant Tank & Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Amada |
| Model | HA-250 |
| Condition | Used |
| Stock Number | 2392 |
| Make | Amada (Japan) |
| Model | HA-250 |
| Cutting Capacity (for Round) | 250 mm |
| Cutting Capacity (for Rectangle) | 300 mm x 250 mm |
| Max. Travel for Auto-Feed Vice | 400 mm (single time) |
| Max. No. of Travels for Auto-Feed Vice | 9 Times |
| Blade Size | Length 3505 mm x Width 25 mm x Thickness 0.95 mm |
| Blade Speeds | 20 m/min to 80 m/min |
| Blade Motor Power | 2.2 kW |
| Type | Fully Automatic ; equipped with PLC. |
| Other Information 1 | - Can be used in Full Automatic Mode, Semi-Automatic Mode and in Manual Mode as well. |
| Other Information 2 | - Operating Manual, Electrical Drawing, Hydraulic Drawings etc. are available. |
| Other Information 3 | - Complete with Coolant Tank & Pump. |
| Other Information 4 | - Machine is in excellent working condition. |
