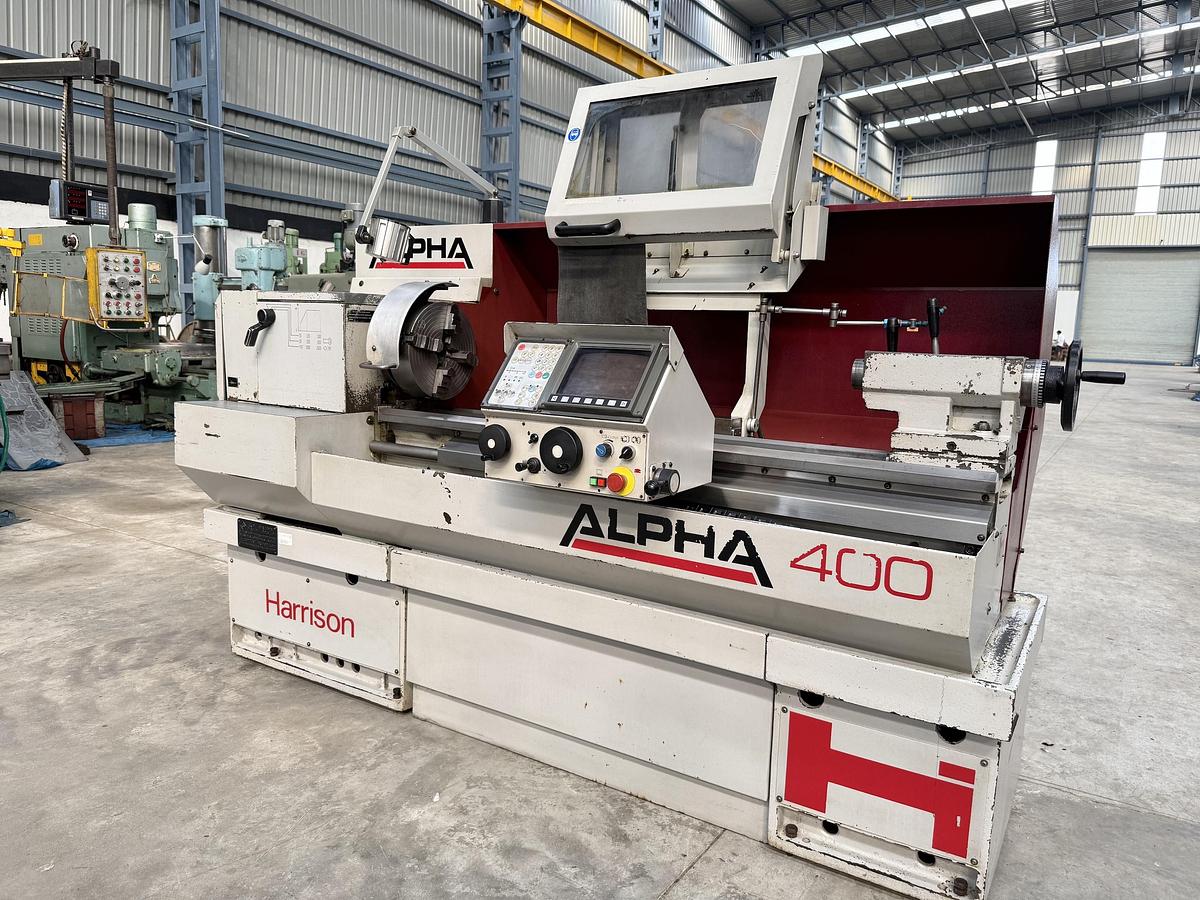

Harrison England 1250 mm Job Length CNC Lathe Machine

Harrison (England) make CNC Lathe Machine in excellent working condition. It is a Flat-Bed type CNC Lathe machine having maximum Job Length of 1250 mm. The machine is equipped with a Fanuc Teach-In CNC Controller. It is ideal for tool-rooms, maintenance jobs, and short batch production, as it combines simplicity of manual turning with the accuracy of CNC machining. The technical details are as follows -

Make - Harrison (England)

Model - Alpha 400

Center Height - 205 mm

Max. Length of Job - 1250 mm

Max. Job Diameter over Cross-Slide - 245 mm

Max. Job Diameter over Bed - 400 mm

Max. Job Diameter in Gap-Bed - 585 mm

Bed Width - 318 mm

Spindle Speeds - 15 rpm to 2500 rpm (Infinitely Variable)

Spindle Bore - 54 mm

4-Jaw Chuck Diameter - 305 mm

Year of Make - 1996

CNC Controller - Fanuc Teach-In

- Complete with many Tool Holders, Collet Chuck, Collets etc.

- Operating Manuals & Electrical Drawings etc are available.

- Machine is in excellent working condition.
