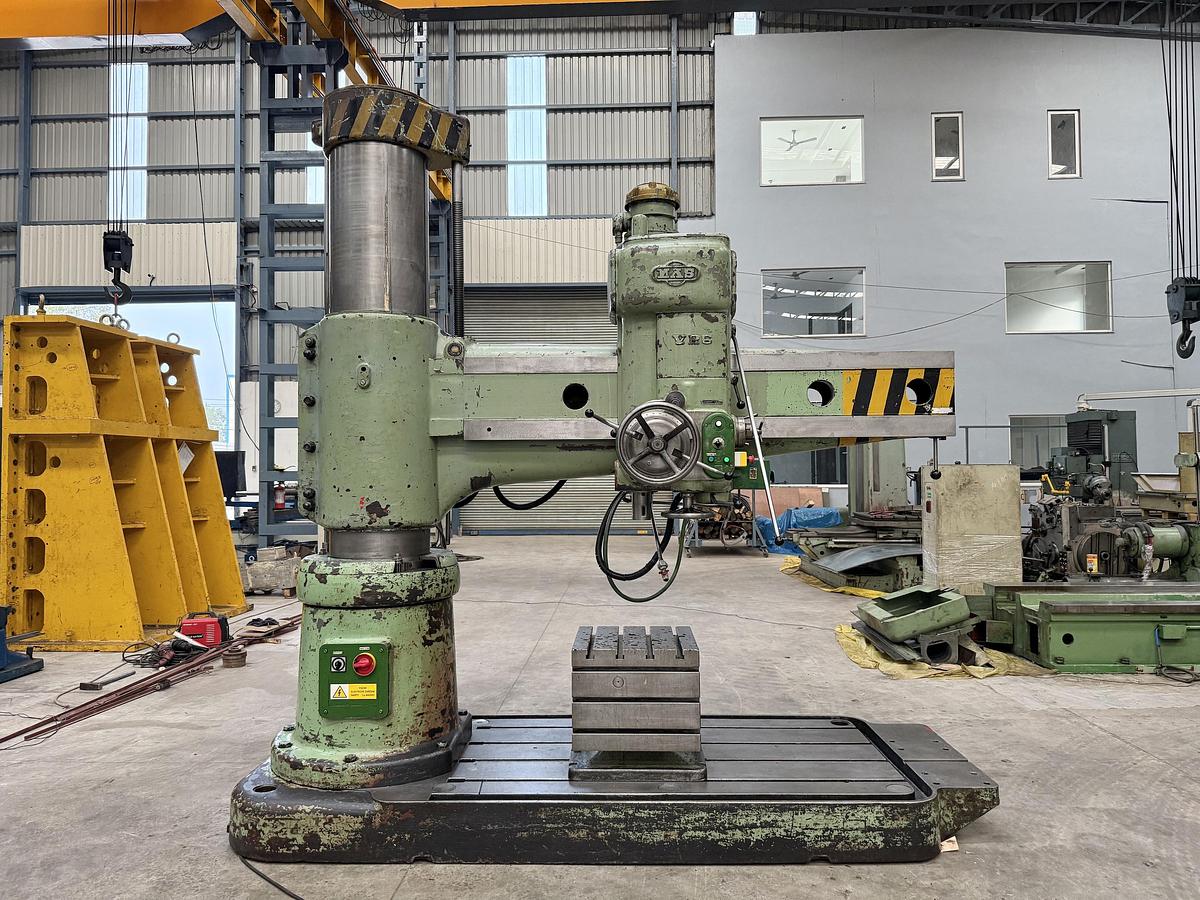

MAS Czech VR-6 80 mm Capacity Radial Drilling Machine

MAS (Czech Republic) make Radial Drilling Machine in excellent working condition. The model of the machine is VR-6 and the Drilling Capacity of the Machine is 80 mm and the Arm Length is 2300 mm.

The technical details are as follows -

Make - MAS (Czech Republic)

Model - VR-6

Drilling Capacity - 80 mm

Spindle Diameter - 90 mm

Arm Length - 2300 mm

Spindle Speeds - 16 rpm to 1410 rpm

Spindle Taper - MT-5

Spindle Feed Travel - 380 mm

Spindle Feed Rate of Travel - 0.031 mm/rev to 2.00 mm/rev

Vertical Travel of Arm - 875 mm

Max. Height between Spindle to Top of Base - 2125 mm

Tilting Cube Table Size - 550 mm x 550 mm

Tilting Angle of Cube Table - 0 to 90 degree

Clamping Type for Drilling Head - Manual

Clamping Type for Arm - Motorised

- Machine is in excellent working condition.
