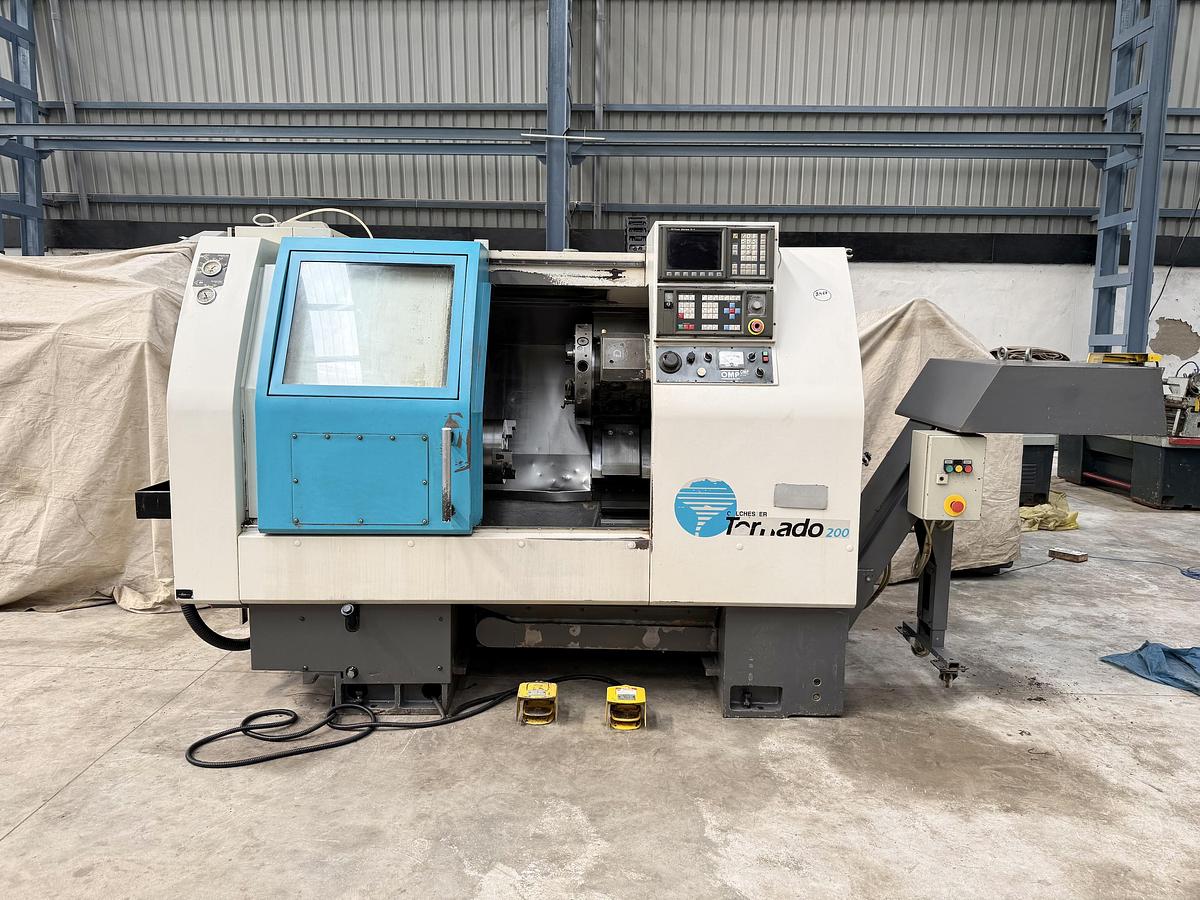

Colchester Tornado 200 CNC Turning Lathe Machine

Colchester Tornado 200 CNC Turning Lathe Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

Colchester (England) make CNC Turning Lathe Machine in excellent working condition. The model of the machine is Tornado 200 and the machine is complete with Chip Conveyor, Step-Down Transformer, many Tool Holders, spare Jaws, many other accessories, Operating Manuals, Electrical Drawings etc. The technical details are as follows -


Make - Colchester (England)

Model - Tornado 200

Max. Machining Diameter - 250 mm

Max. Machining Length - 400 mm

Max. Distance between Centers - 750 mm

Max. Swing Diameter over Bed - 530 mm

Max. Swing Diameter over Carriage - 330 mm

Max. Spindle Speeds - 3500 rpm

Spindle Bore - 77.5 mm

Draw Tube Bar Capacity - 65 mm

Chuck Diameter - 254 mm

CNC Controller - Fanuc Series 0-T

No. of Turret Tool Stations - 12 Tools

- Complete with Step Down Transformer and Chip Conveyor.

- Complete with many spare Jaws, Tool Holders, & other accessories.

- Operating Manuals & Electrical Drawings etc are available.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerColchester
ModelTornado 200
ConditionUsed
Stock Number2467
MakeColchester (England)
ModelTornado 200
Max. Machining Diameter250 mm
Max. Machining Length400 mm
Max. Distance between Centers750 mm
Max. Swing Diameter over Bed530 mm
Max. Swing Diameter over Carriage330 mm
Max. Spindle Speeds3500 rpm
Spindle Bore77.5 mm
Draw Tube Bar Capacity65 mm
Chuck Diameter254 mm
CNC ControllerFanuc Series 0-T
No. of Turret Tool Stations12 Tools
Other Information 1- Complete with Step Down Transformer and Chip Conveyor.
Other Information 2- Complete with many spare Jaws, Tool Holders, & other accessories.
Other Information 3- Operating Manuals & Electrical Drawings etc are available.
Other Information 4- Machine is in excellent working condition.
