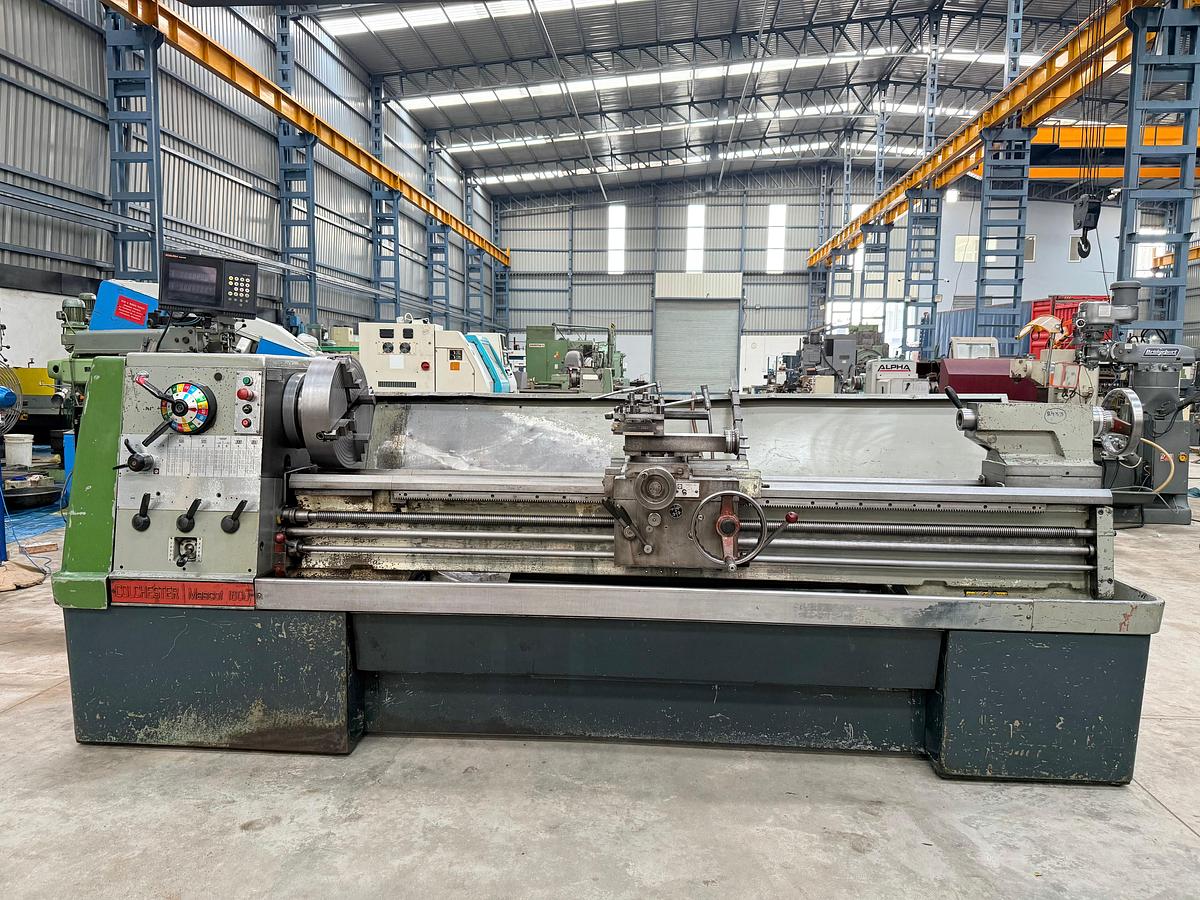

Colchester England Mascot 1600 Gap Bed Lathe Machine
Colchester England Mascot 1600 Gap Bed Lathe Machine
Contact us for price
Location:New Delhi, India
Description
Colchester (England) make Gap Bed type Lathe Machine made in excellent working condition. The model of the machine is Mascot 1600 and the Maximum Length of Job is 2030 mm. The machine is complete with its 4-Jaw Chuck, 3-Jaw Chuck, Job Steady, Follow Rest, 2-Axis DRO and many other accessories. The technical details are as follows -
Make - Colchester (England)
Model - Mascot 1600
Center Height - 225 mm
Max. Length of Job - 2030 mm
Max. Job Diameter over Bed - 440 mm
Max. Job Diameter over Cross-Slide - 265 mm
Max. Job Diameter in Gap - 710 mm
4-Jaw Chuck Diameter - 405 mm
3-Jaw Chuck Diameter - 310 mm
Spindle Speeds - 20 rpm to 1600 rpm
Bed Width - 342 mm
Spindle Bore - 78 mm
- Equipped with a 2-Axis DRO.
- With Job Steady, Follow Rest, and many other accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Colchester |
| Model | Mascot 1600 |
| Condition | Used |
| Stock Number | 2433 |
| Make | Colchester (England) |
| Model | Mascot 1600 |
| Center Height | 225 mm |
| Max. Length of Job | 2030 mm |
| Max. Job Diameter over Bed | 440 mm |
| Max. Job Diameter over Cross-Slide | 265 mm |
| Max. Job Diameter in Gap | 710 mm |
| 4-Jaw Chuck Diameter | 405 mm |
| 3-Jaw Chuck Diameter | 310 mm |
| Spindle Speeds | 20 rpm to 1600 rpm |
| Bed Width | 342 mm |
| Spindle Bore | 78 mm |
| Other Information 1 | - Equipped with a 2-Axis DRO. |
| Other Information 2 | - With Job Steady, Follow Rest, and many other accessories. |
| Other Information 3 | - Machine is in excellent working condition. |
