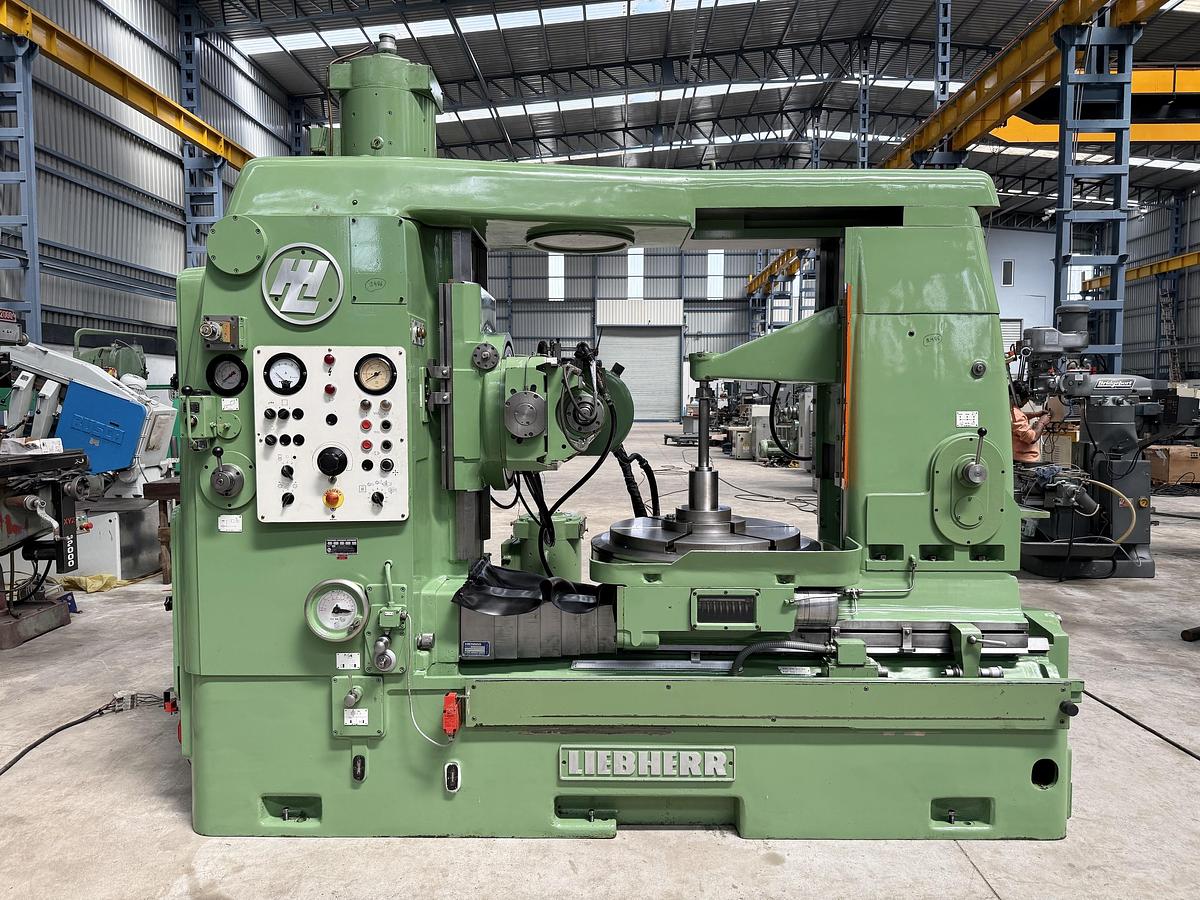

Liebherr L-901 Hydraulic Gear Hobbing Machine

Liebherr (Germany) make High-Production Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is L-901 and the Maximum Module Capacity is 10 Modules and Maximum Gear Diameter is 900 mm. It is a complete Auto-Cycle type Heavy Duty Gear Hobbing Machine. The machine is complete with its Change Gears, Arbours, Mandrels, Job Supports, Operating Manual, Electrical Drawings, Coolant Tank and Pump, Leveling Pads, Covers, Splash Guards etc. The technical details are as follows -

Make - Liebherr (Germany)

Model - L-901

Max. Module - 10 module

Max. Diameter of the Gear - 900 mm

Max. Vertical Travel of Hob-Slide - 400 mm

Table Diameter - 710 mm

Max. Hob Cutter Size - Diameter 192 mm x 200 mm Length

Max. Hob Shifting - 200 mm

Minimum No. of Teeth - 6

Table Bore Diameter - 160 mm

Hob Cutter Speeds - 30 rpm to 240 rpm

Weight of the Machine - 9.80 Tons (Approximately)

- Continuously variable Hob Rotation Speeds & Feed Rates of Travels.

- Complete with Change Gears, Arbours, Mandrels, Job Supports etc.

- Complete with Leveling Pads, Covers & Splash Guards, Coolant Tank & Pump etc.

- Operating Manuals & Electrical Drawings are available.

- Machine is in excellent working condition.
