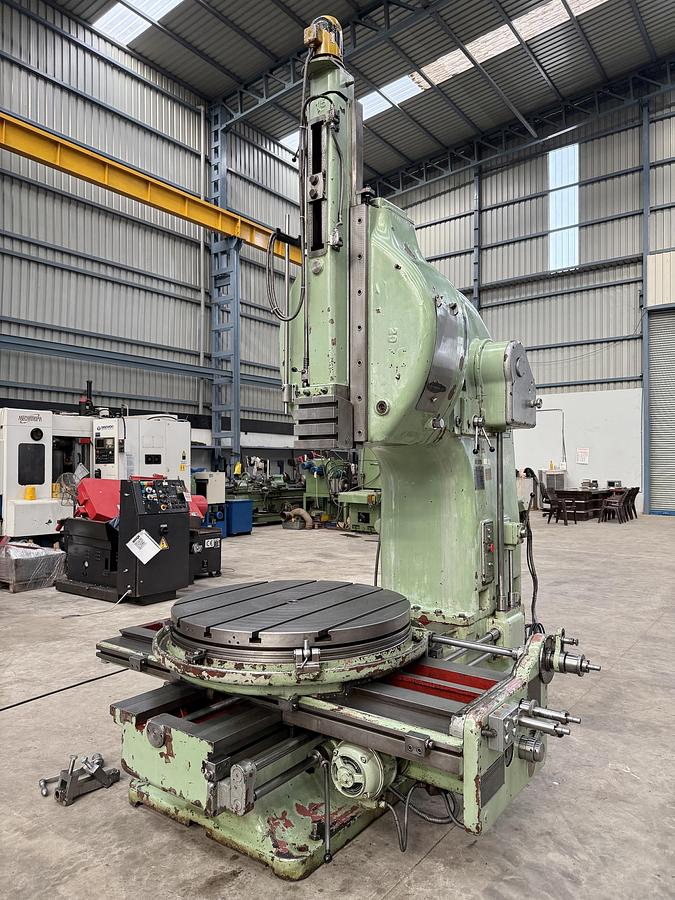

TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine

TOS (Czech Republic) make Heavy Duty Vertical Slotting Machine in excellent working condition. The model of the machine is HOV-63 and the Maximum Stroke Length is 630 mm. The machine has Rapid & Feed Travels on the Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - TOS (Czech Republic)

Model - HOV-63

Max. Stroke Length - 630 mm

Table Diameter - 1100 mm

Longitudinal Travel - 1000 mm

Cross Travel - 850 mm

Height between Table to Machine Body - 755 mm

Distance between Toolhead edge to Column - 1100 mm

Max. Distance between Table Center to Column - 1650 mm

Stroke Rate - 7 strokes/min to 45 strokes/min

Feed Travel Rate - 0.1 mm/stroke to 2.5 mm/stroke

Weight of the Machine - 9.50 tons (approximately)

Head Rotation - +10 degree to -10 degree

- Feed & Rapid Travel on Table Rotation and on Cross & Longitudinal Travels.

- Machine is in excellent working condition.
