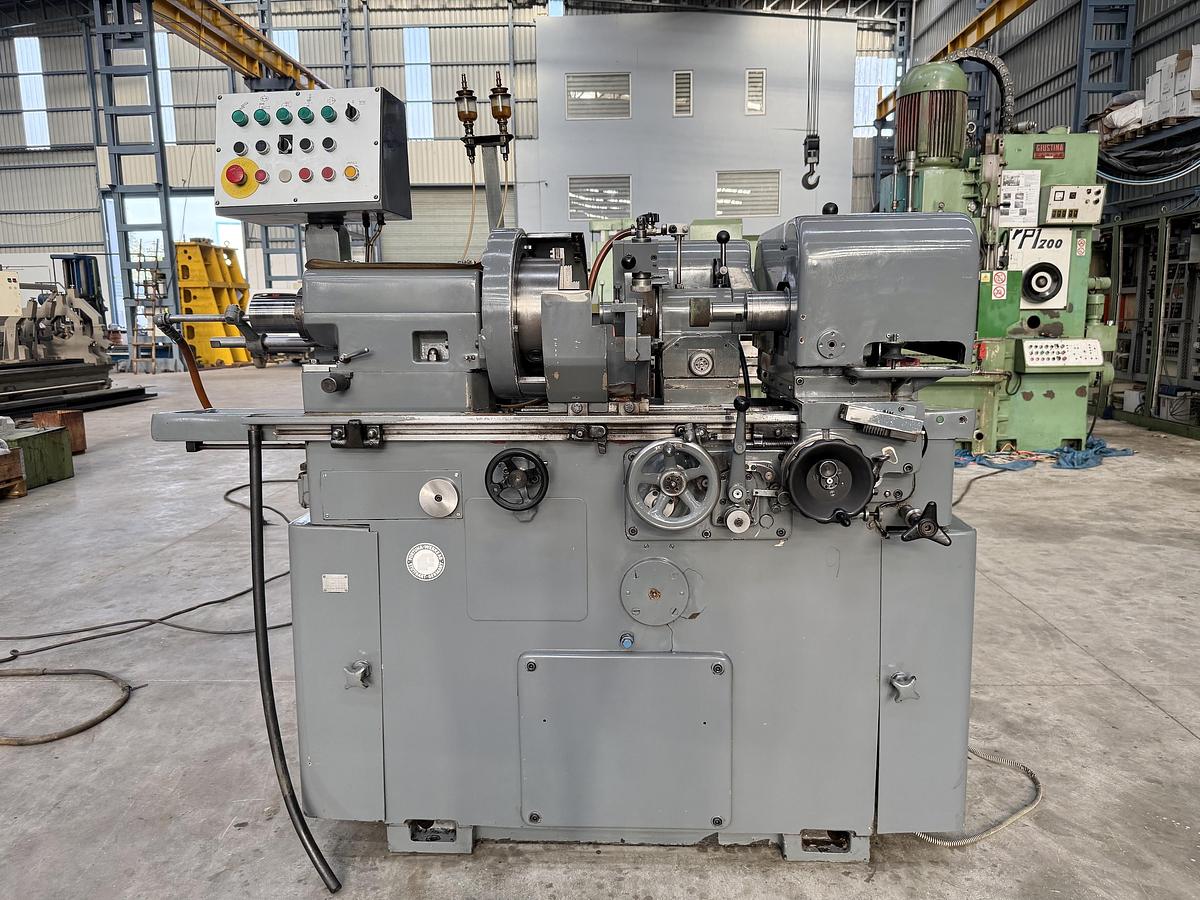

Fortuna Germany SIP Internal and Face Grinding Machine

Fortuna (Germany) make Internal & Face Grinding Machine in excellent working condition. The model of the machine is SIP and the Maximum Job Swing Diameter is 375 mm. The machine is complete with lots of NEW Grinding Wheels, spare Internal Grinding Spindle, Magnetic Chuck, Operating Manual, Electrical Drawings, Quills, and many other accessories. The technical details are as follows -

Make - Fortuna (Germany)

Model - SIP

Max. Diameter of Job - 375 mm

Max. Ground-able Internal Diameter - 200 mm

Table Longitudinal Travel - 275 mm

Max. Distance between Chuck to Spindle Support - 450 mm

Rotation of Work-Head - +20 degree to -10 degree

Work-Head Speeds - 70 rpm to 400 rpm

Least Count of the Machine - 1 Micron (0.001 mm)

Internal Grinding Spindle Diameter - 80 mm

Face Grinding Wheel Diameter - 160 mm

Chuck Diameter - 230 mm

Internal Grinding Spindle - 11,000 rpm (Approximately)

- Equipped with Face Grinding Attachment.

- Equipped with a Wheel Dressing Unit.

- Feature of Automatic Depth Adjustment "Auto-Cut".

- With lots of NEW spare Grinding Wheels, Quills, Grinding Spindle, Magnetic Chuck etc.

- Operating Manual & Electrical Drawings are available for the machine.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.
