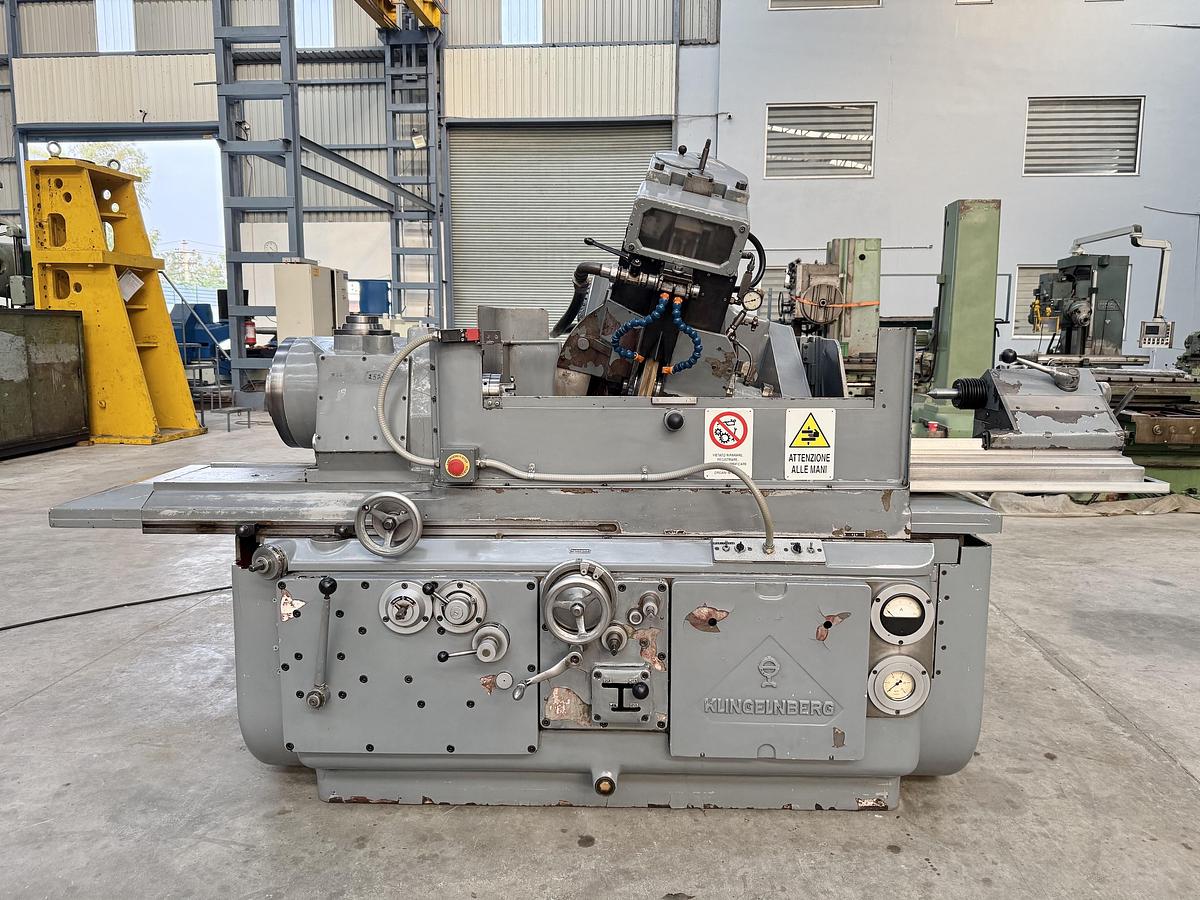

Klingelnberg HSS-33B Worm & Thread Grinding Machine

Klingelnberg (Germany) make Worm Grinding Machine in excellent working condition. The model of the machine is HSS-33B. The machine has a Maximum Module Capacity of 25 Modules and Maximum Job Length between Centers of 1250 mm. It has features of Automatic Wheel Dresser, Automatic Indexing, Hydraulic Rapid Travels of the Wheel-Head etc. The machine is complete with Change Gears, many Grinding Wheels, Grinding Wheel Flanges, and other accessories. The technical details are as follows -

Make - Klingelnberg (Germany)

Model - HSS-33B

Maximum Job Diameter - 325 mm

Maximum Job Length between Centers - 1250 mm

Maximum Job Grinding Length - 450 mm

Maximum Module Capacity - 25 Module

Minimum Job Diameter - 10 mm

Minimum Module Capacity - 0.5 Module

Maximum Pitch - 500 mm

Minimum Pitch - 1.5 mm

Maximum Number of Starts - 10

Work-Head Spindle Bore - 130 mm

Maximum Grinding Wheel Diameter - 485 mm

Grinding Wheel Width - 25 mm to 60 mm (depending on module)

Maximum Grinding Depth - 65 mm

Maximum Helix Angle - 40 degree

- Feature of Hydraulic Rapid Travel of Wheel-Head, Automatic Indexing etc.

- Equipped with Automatic Wheel Dressing Attachment.

- Complete with Change Gears, Grinding Wheels, Wheel Flanges, & other accessories.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.
