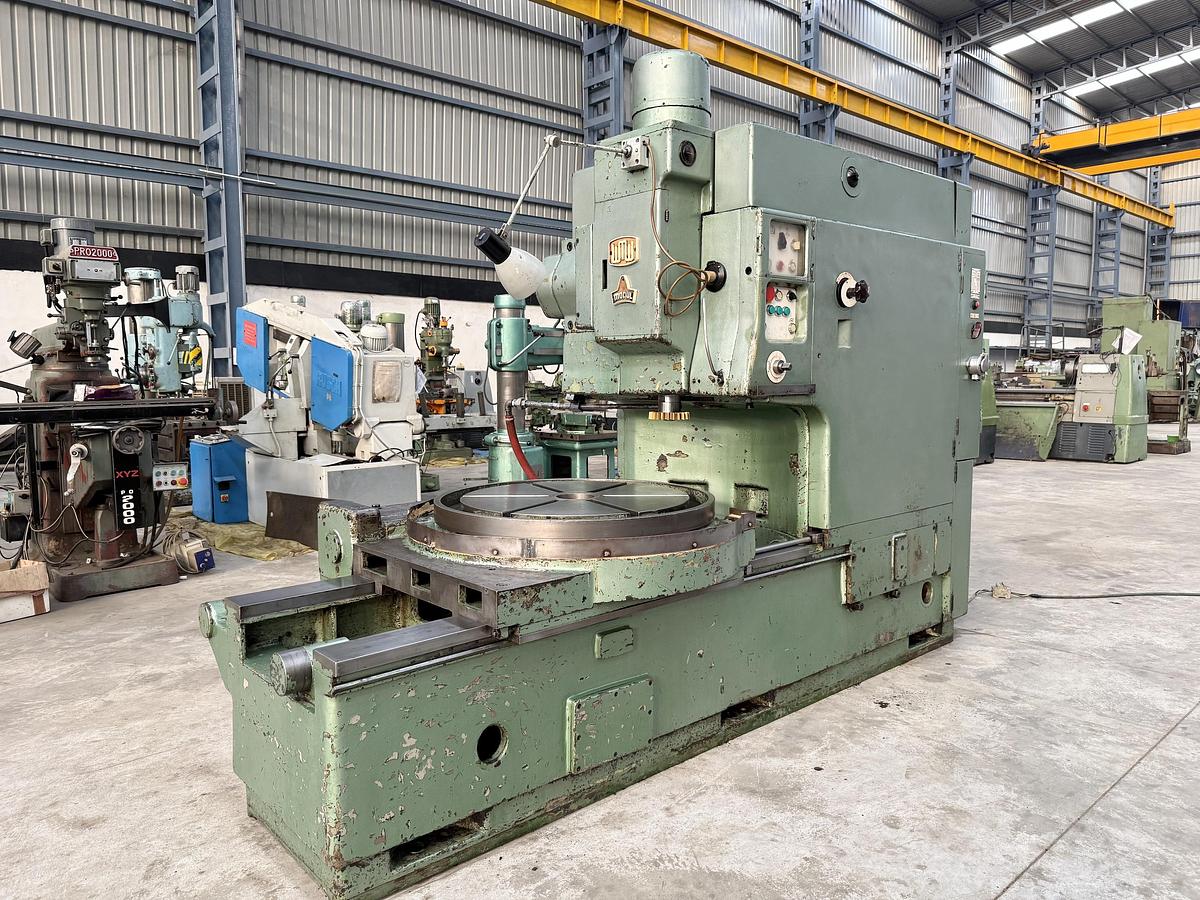

WMW Modul 10 Module x 1250 mm Diameter Heavy Duty Gear Shaper Machine

WMW (Germany) make Heavy Duty Gear Shaping Machine in excellent working condition. The model of the machine is ZSTWZ 1000 x 10 and the Max. Stroke Length is 160 mm. The maximum module capacity of the machine is 10 Modules and the Maximum Gear Diameter is 1250 mm. The machine is complete with Change Gears, Operating Manuals, Electrical Drawings, Job Supports, many Cutters, Adaptors etc. The technical details are as follows -

Make - WMW Modul (Germany)

Model - ZSTWZ 1000 x 10

Max. Module Capacity - 10 Modules

Max. Gear Diameter - 1250 mm

Max. Length of Stroke - 160 mm

Table Diameter - 900 mm

Stroke Rate - 45 strokes/min to 280 strokes/min

Height between Table Top to Machine Body - 320 mm

Distance from Cutter-Center to the Table-Center - 0 mm to 720 mm

Table Bore Diameter - 125 mm

- Motorised Rapid Travels in Table Rotation & Table Travels.

- Complete with Change Gears, Job Supports, Cutters, Adaptors etc.

- Operating Manuals, Electrical Drawings, etc. are available.

- Machine is in excellent working condition.
