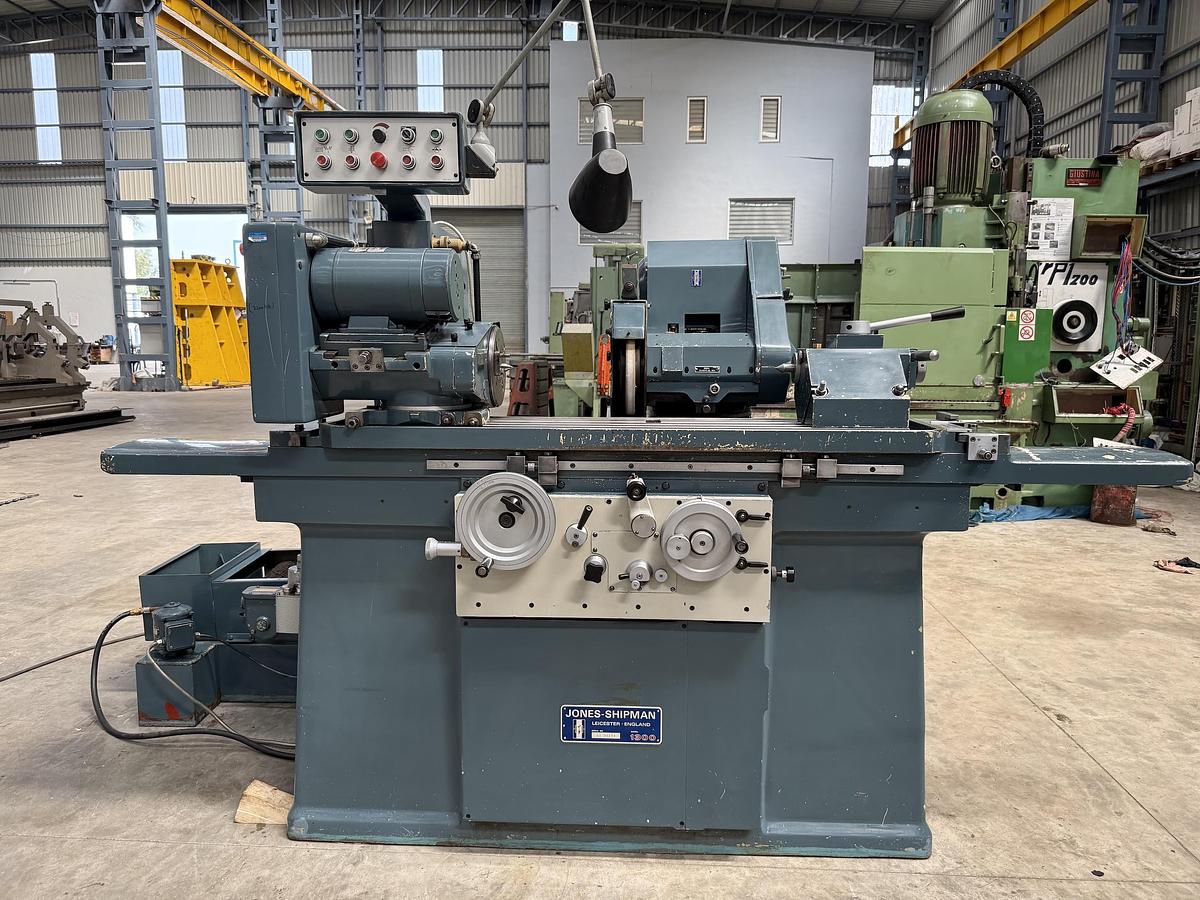

Jones Shipman England Precision Universal Cylindrical Grinder Machine

Jones & Shipman (England) make Precision Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is 1300 and the Grinding Capacity is 254 mm Diameter and 686 mm Length of Job. The machine is complete with its Job Steady, Wheel Dresser, Chuck, Coolant Filtration Unit, Coolant Tank, Coolant Pump, Wheel Balancing Stand, Splash Guards etc. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1300

Center Height - 127 mm

Max. Job Diameter - 254 mm

Max. Length of Job - 686 mm

Grinding Wheel Size - Diameter 305 mm x 38 mm Width

Work-Head Speeds - 30 rpm to 300 rpm (Infinitely Variable)

Table Rotation - 18 Degree to -16 Degree

Least Count of Wheel-Head Travels - 5 Microns (on Job Diameter)

Graduations on Dials - Metric & Imperial both (mm and inches both)

- Equipped with Internal Grinding Attachment.

- Micro-Feed Adjustments on both Table & Wheel-Head Travel.

- Features like Automatic Depth Adjustment "Auto-Cut" and Automatic Plunge Grinding.

- Complete with Job Steady, Wheel Dresser, Chuck, Wheel Balancing Stand etc.

- Complete with Coolant Filtration Unit, Coolant Tank, Pump, Splash Guards etc.

- Machine is in excellent working condition.
