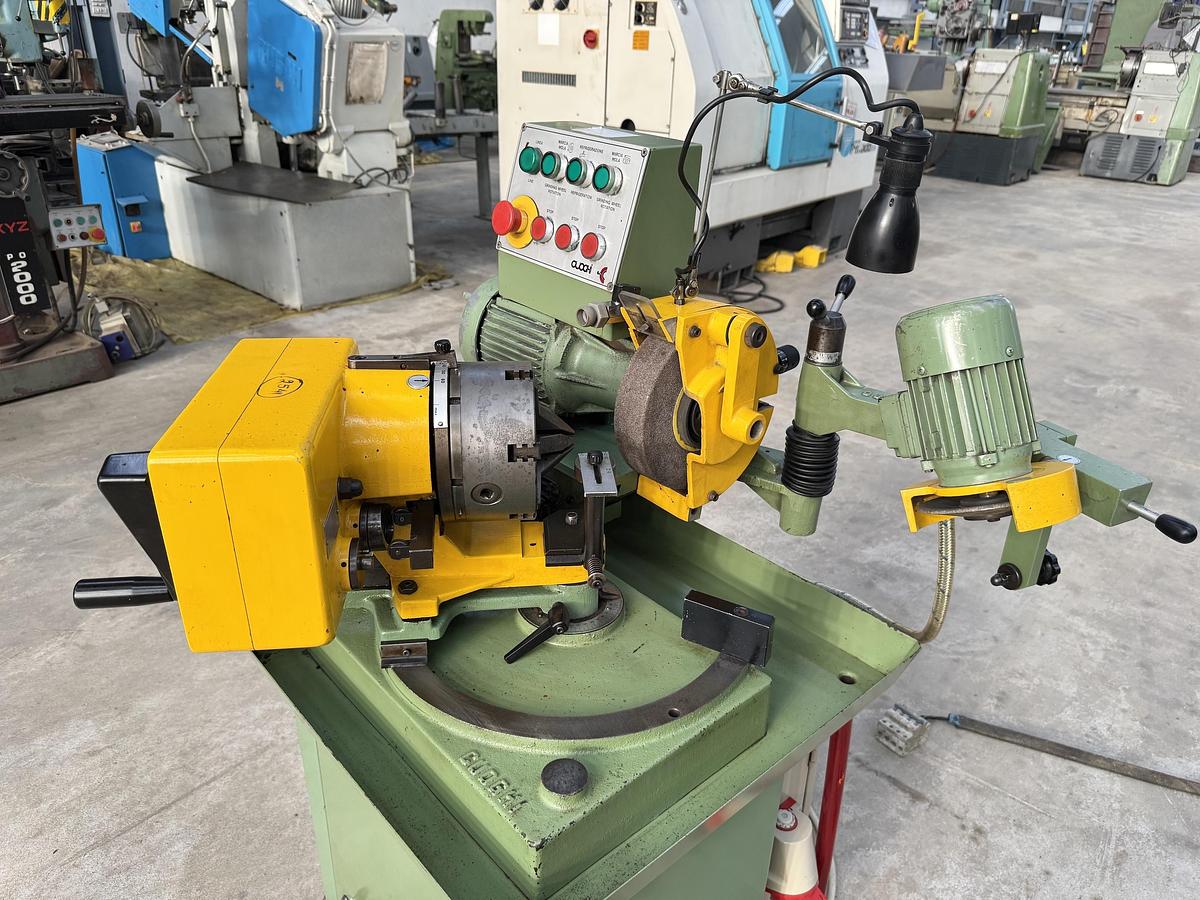

Cuoghi Italy APE-60 Tool Sharpening Machine

Cuoghi (Italy) make Tool Sharpening Machine in excellent working condition. The model of the machine is APE-60 and the Diameter Range Capacity is from 3 mm to 60 mm. It is a semi-automatic sharpening machine designed & built to sharpen twist drills, 2-rake drills, plate drills, dead hole drills, Multi-diameter drills, countersinking drills, pilot bits, diamond drills, prismatic and self-centering drills, 2-12 cutting edge left or right flute drills, end mills, taps etc. The machine is equipped with its Web-Thinning attachment as well. The technical details are as follows -

Make - Cuoghi (Italy)

Model - APE-60

Diameter Range - 3 mm to 60 mm

Min. & Max. Drill Angle - 40 degree to 180 degree

Grinding Wheel Size - Diameter 200 mm x 45 mm Width

Chuck Diameter - 160 mm (6-jaw type).

- Complete with Web-Thinning Attachment.

- Equipped with Wheel Dresser.

- Suitable for both Dry Grinding and for Wet Grinding applications.

- Complete with spare Cams & other accessories.

- Operating Manual & Electrical Drawing of the machine is available.

- Machine is in excellent working condition.
