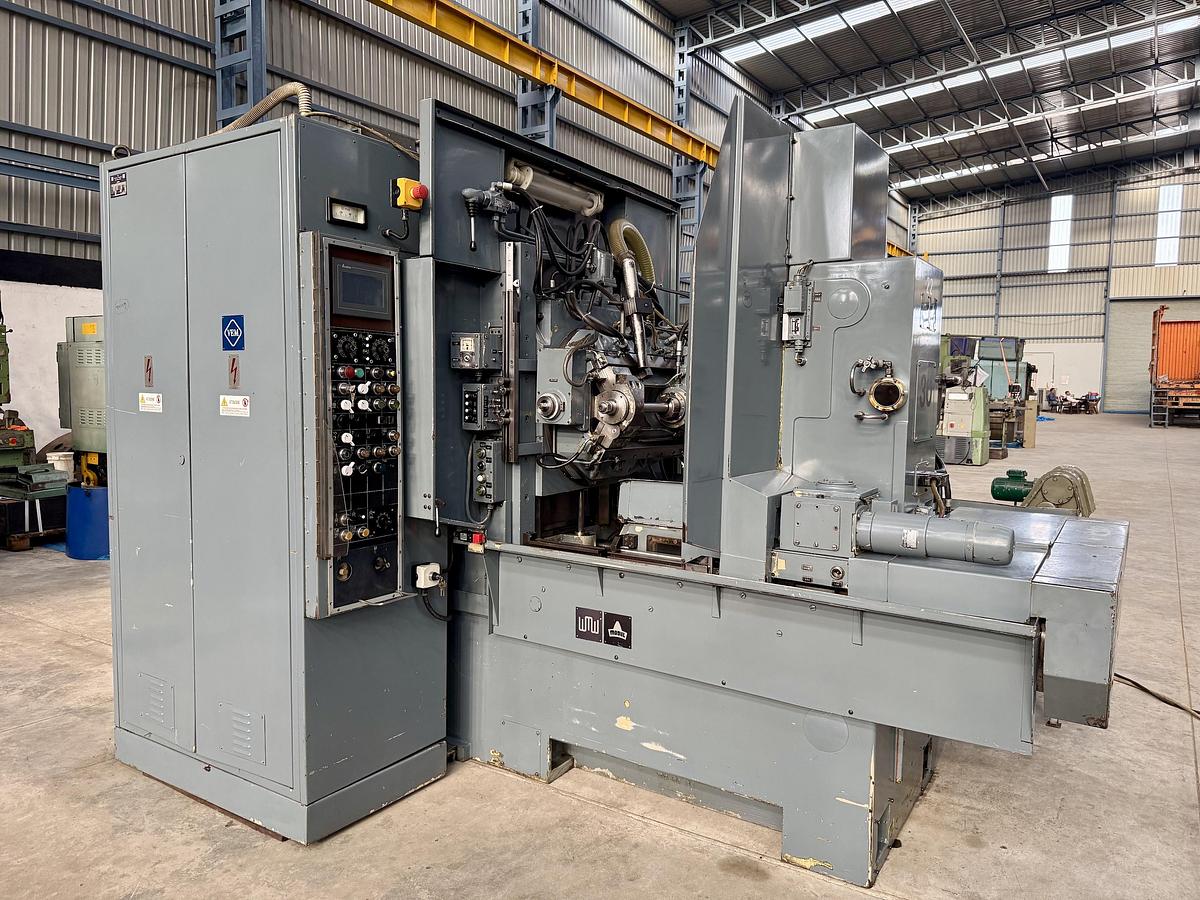

WMW Modul ZFWZ-315 Hydraulic Gear Hobbing Machine

WMW Modul (Germany) make High-Production Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is ZFWZ 315 and the Maximum Module Capacity is 8 Modules and the Maximum Gear Diameter is 400 mm. The machine is retrofitted with new PLC, HMI & new electrical panel and it is a Double-Cut type Hydraulic Gear Hobbing Machine. The machine is complete with its Change Gears, Chip Conveyor, Coolant Tank and Pump, Leveling Pads, Arbours, Covers, Operating Manuals, PLC Ladder Logic, Mechanical & Hydraulic Drawings etc. The technical details are as follows -

Make - WMW Modul (Germany)

Model - ZFWZ 315

Max. Module - 8 module

Max. Diameter of the Gear - 400 mm

Max. Vertical Travel of Hob-Slide - 280 mm

Table Diameter - 370 mm

Max. Hob Cutter Size - Diameter 170 mm x 170 mm Length

Max. Hob Shifting - 140 mm

Table Bore Diameter - 210 mm

Hob Cutter Speeds - 63 rpm to 500 rpm

Max. Helix Angle - +45 degree to -45 degree

Distance between Cutter Center to Table Center - 25 mm to 325 mm

Height between Table Top to Tail-Stock Center - 600 mm

- Machine can be used in Single-Cut, Double-Cut, Up/Down Cut, Radial Feed Cut Cycles etc.

- Equipped with a Rotary Cylinder for Hydraulic Clamping of the Job.

- Features of Hydraulic Clamping of Hob Arbour, Automatic Hydraulic Rotation of Hobbing Head etc.

- High Accuracy & Rigid Machine with Hydraulic Locking of Table Slide & Hob Slide.

- Retrofitted with new PLC, HMI & new electrical panel.

- It is an Auto-Cycle High-Production Gear Hobbing Machine.

- Complete with Change Gears, Arbours, Chip Conveyor, Coolant Tank, Leveling Pads, etc.

- Operating Manual, PLC Ladder Logic, Mechanical & Hydraulic Drawings etc. are available.

- Machine is in excellent working condition.
