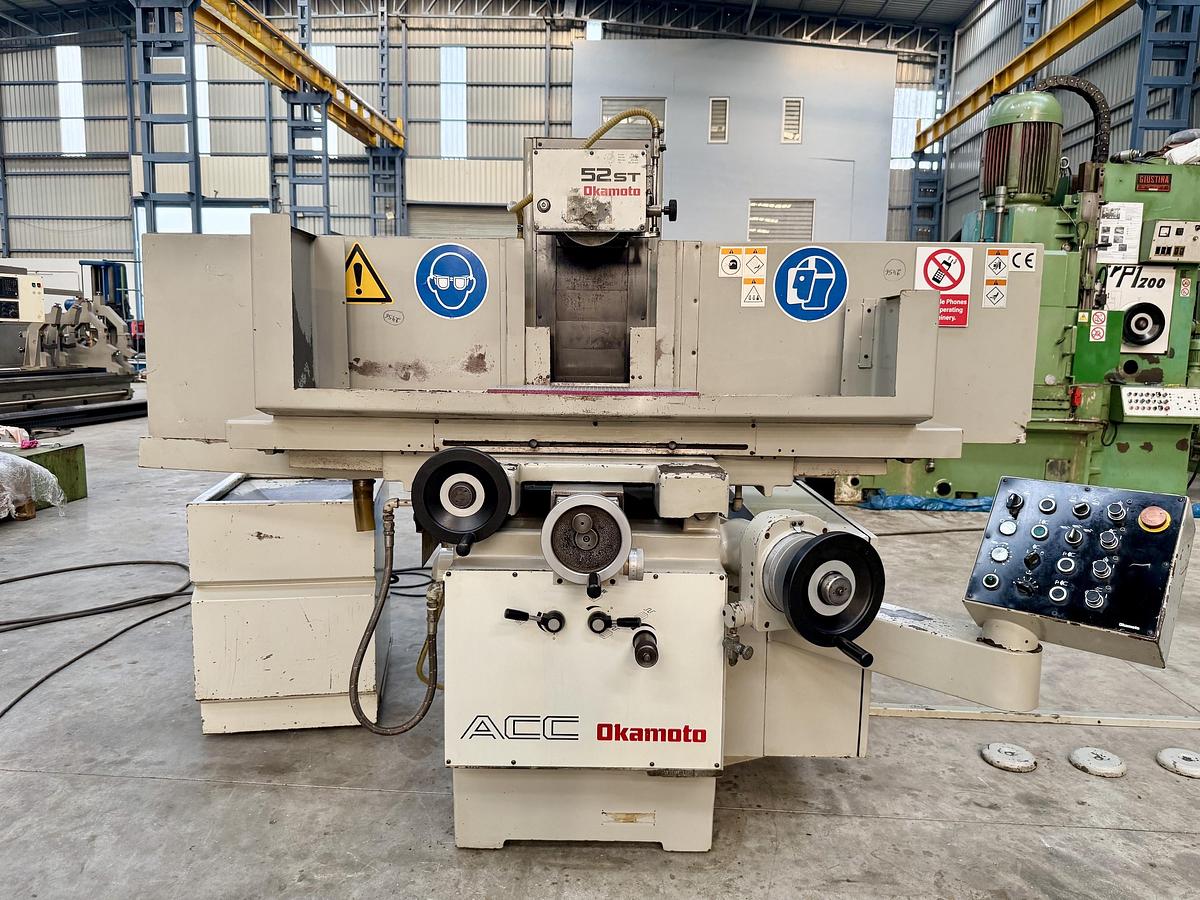

Okamoto Japan ACC-52ST Automatic Surface Grinding Machine

Okamoto (Japan) make Automatic Surface Grinding Machine in excellent working condition. The model of the machine is ACC-52ST and the Magnet Size is 208 mm x 510 mm. It is an all 3-Axis auto machine having features of Automatic Plunge Grinding and Automatic Depth Adjustment "Auto-Cut" as well. It is a High-Precision machine with a Least Count of 2 Micron (0.002 mm) on the Vertical Travels and a Least Count of 1 Micron (0.001 mm) on the Cross Travels. The technical details are as follows -

Make - Okamoto (Japan)

Model - ACC-52ST

Magnet Size - 208 mm x 510 mm

Longitudinal Travels - 650 mm

Cross Travels - 230 mm

Grinding Wheel Size - Diameter 225 mm x 25 mm Width

Max. Height between Magnet Top to Wheel Center - 435 mm

Least Count of Vertical Travel - 2 Micron (0.002 mm)

Least Count of Cross Travel - 1 Micron (0.001 mm)

Graduations on Dials - Metric (in mm)

- Features of Automatic Depth Adjustment, Automatic Plunge Grinding, etc.

- Complete with Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
