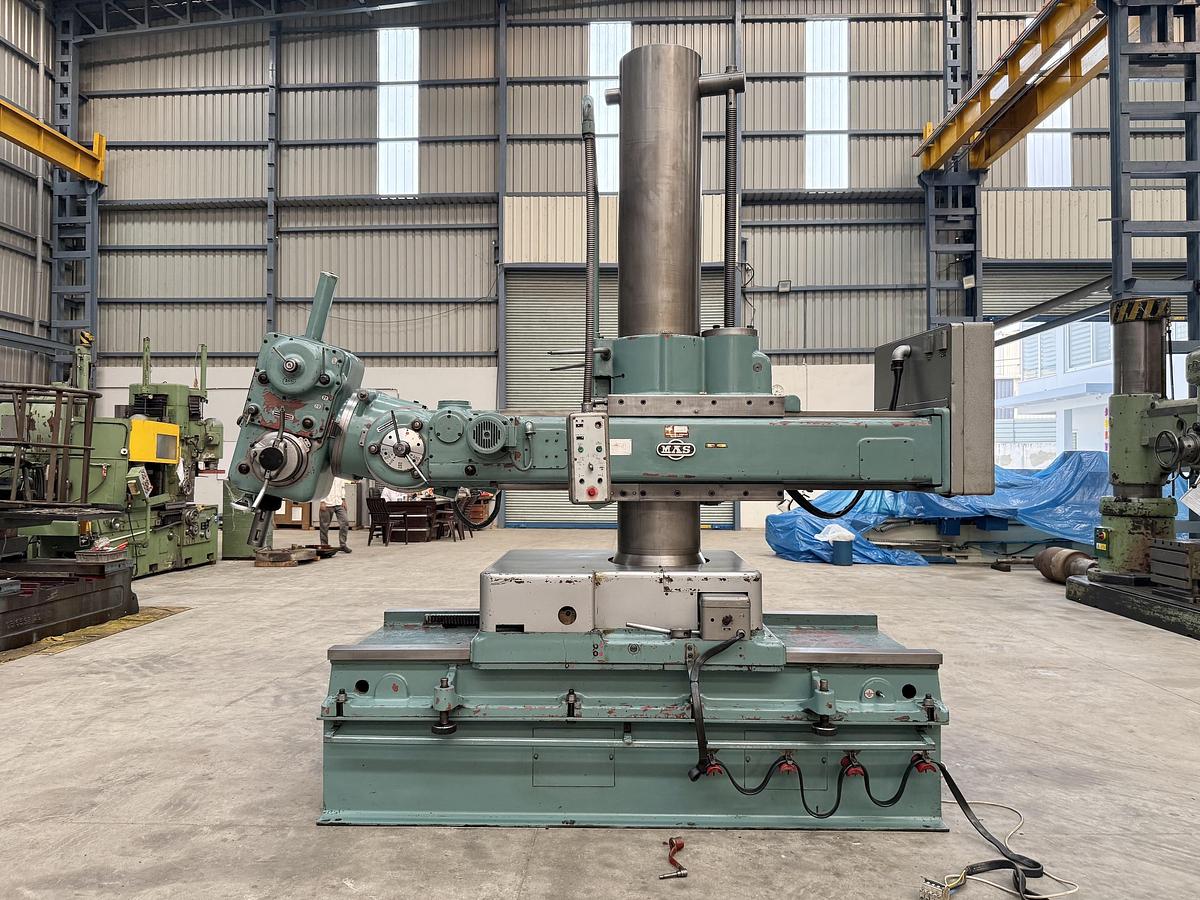

MAS Czech VRM50A Portable Universal Radial Drilling Machine

MAS (Czech Republic) make Portable Universal Radial Arm Drilling Machine in excellent working condition. It is a Heavy Duty Universal Radial Drill Machine in which the Drilling Head can be rotated on both the Horizontal and Vertical Axis. The technical details are as follows -

Make - MAS (Czech Republic)

Model - VRM50A

Drilling Capacity - 65 mm

Spindle Diameter - 80 mm

Cross-Rail Horizontal Travel (Longitudinal) - 900 mm

Vertical Travel of the Arm - 1250 mm

Travel of Column on the Base - 1225 mm

Max. Distance between Spindle Center to Vertical Column - 2050 mm

Max. Height between Spindle to Floor - 2020 mm

Spindle Taper - MT-5

Spindle Feed Travel - 350 mm

Spindle Rotation on Vertical Axis - 180 degree to -180 degree

Spindle Rotation on Horizontal Axis - 105 degree to -105 degree

Spindle Speeds - 16 rpm to 800 rpm

Spindle Feed Rates - 0.05 mm/rev to 0.50 mm/rev

Column Rotation - 360 degree

Weight of the Machine - 6.90 Tons (Approximately)

- It is a 7-Axis Universal Radial Arm type Drilling Machine.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.
