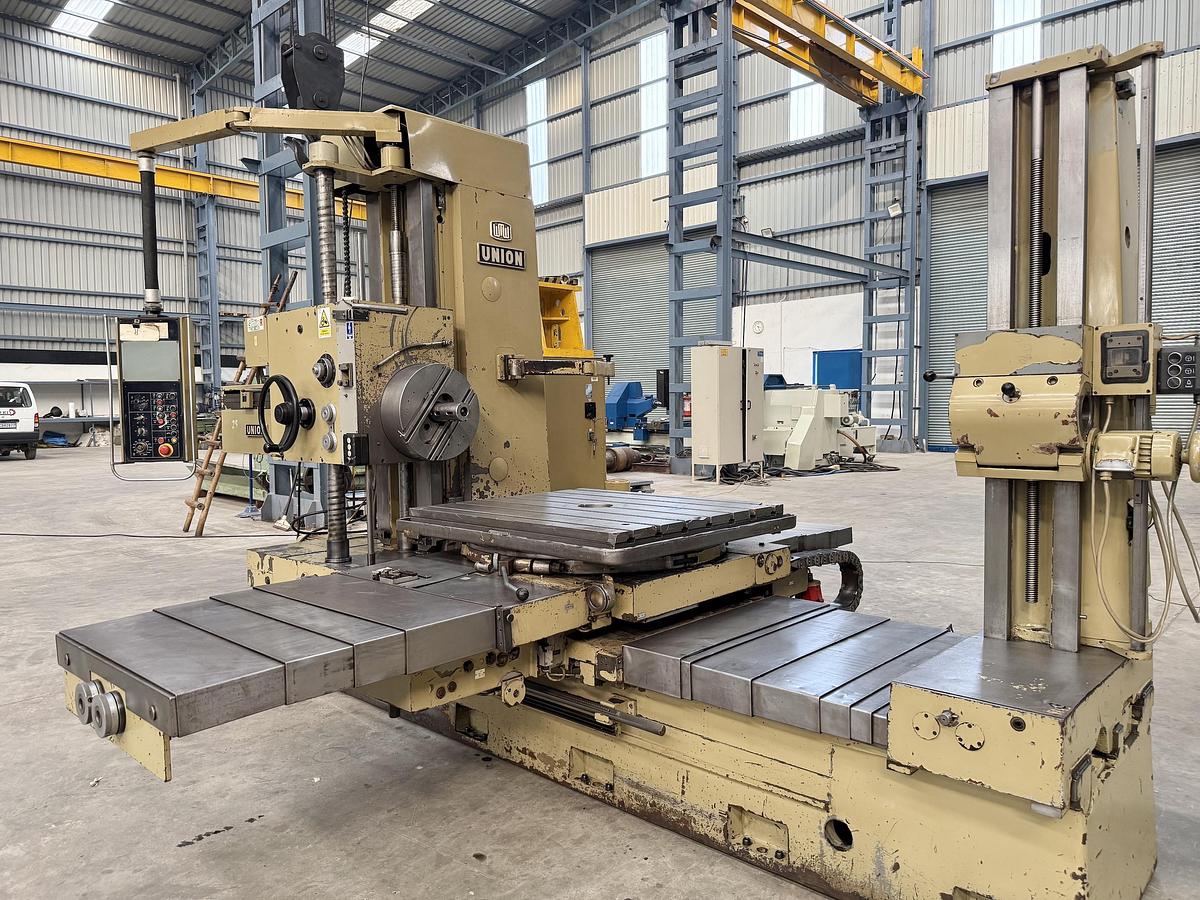

WMW Union BFT 90/3 Horizontal Boring Machine

WMW-Union (Germany) make Horizontal Boring Machine in excellent working condition. The model of the machine is BFT 90/3-1 and the Spindle Diameter is 90 mm. The machine is complete with its Facing Chuck, Tail-Stock, Milling Head, Operating Manual, Electrical Drawings & all other technical documentation. The technical details are as follows -

Make - WMW-Union (Germany)

Model - BFT 90/3-1

Spindle Diameter - 90 mm

Table Size - 1120 mm x 990 mm

Cross Travel - 1000 mm

Vertical Travel - 1000 mm

Longitudinal Travel - 1600 mm

Spindle Travel - 710 mm

Facing Chuck Diameter - 460 mm

Spindle Taper - MT 5

Spindle Speeds - 8 rpm to 1600 rpm

Feed Rates of Travels - 1 mm/min to 2500 mm/min

Job Weight Capacity - 2.50 Tons

Weight of the Machine - 10.4 Tons

- Complete with Facing Chuck, Tail-Stock & Milling Head.

- Machine is equipped with Ball-Screws.

- Technical Documents including Operating Manual, Electrical Drawings etc. are available.

- Machine is in excellent working condition.
