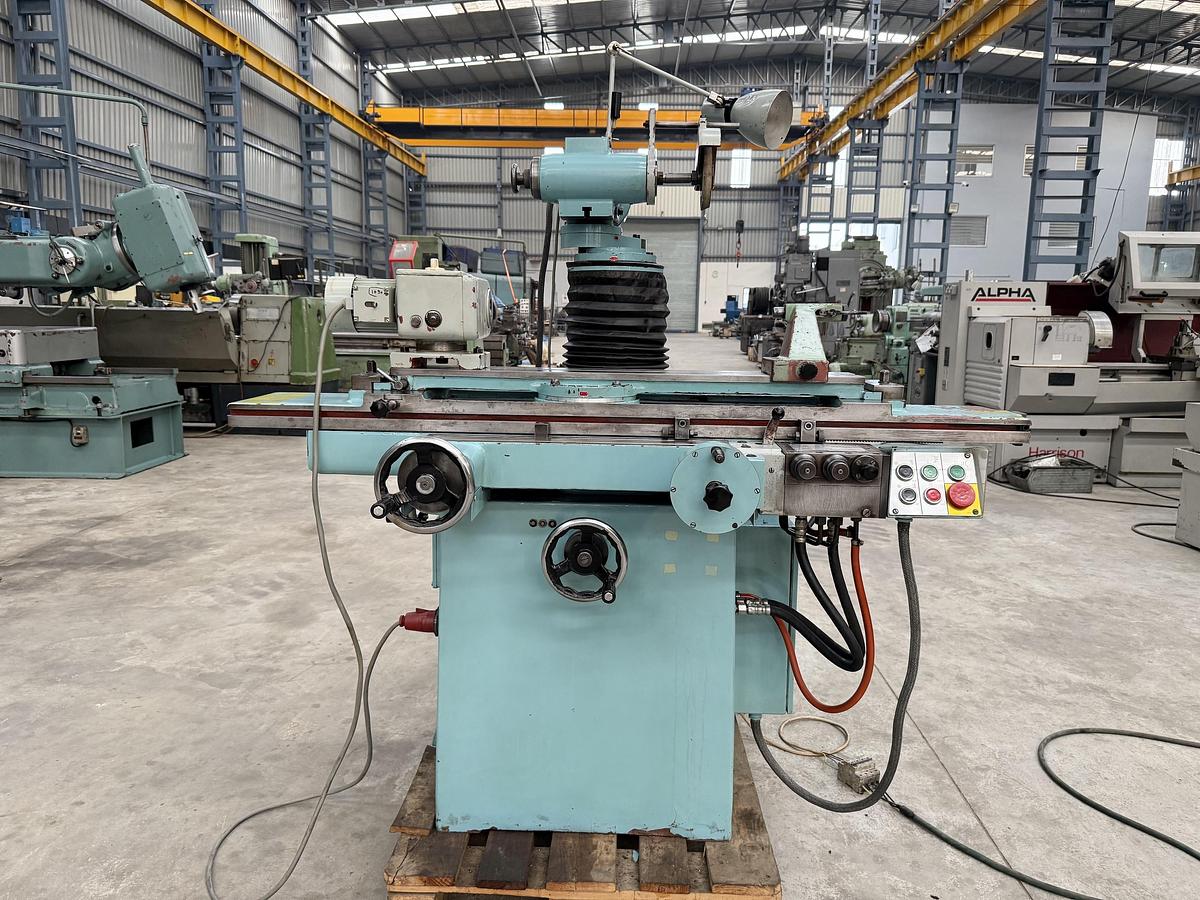

TOS Czech BN102C Hydraulic Automatic Tool & Cutter Grinder

Hydraulic type Universal Tool & Cutter Grinding Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is BN 102 C and it is complete with its Cylindrical Grinding Attachment. It is a Hydraulic type machine having Automatic Longitudinal Travels of the Table. The machine is complete with its many accessories including Work-Head, Relieving Attachment, Internal Grinding Attachment, Cylindrical Grinding Attachment, Tilting type Vice, pair of Centers, and many other accessories. It is one of the latest models of the conventional Tool & Cutter Grinders with the provision of Wet as well as Dry Grinding. The technical details are as follows -

Make - TOS (Czech Republic)

Model - BN 102 C

Table Size - 1000 mm x 140 mm

Max. Swing Diameter of Job - 280 mm

Max. Distance between Centers - 630 mm

Longitudinal Travel of Table - 525 mm

Cross Travel of Table - 250 mm

Vertical Travel of Grinding Spindle - 350 mm

Max. Grinding Wheel Size - 200 mm

Grinding Wheel Speeds - 3244 rpm / 6488 rpm

- Equipped with Cylindrical Grinding Attachment.

- Hydraulic type machine with Automatic Longitudinal Travel of Table.

- Machine is suitable for Wet Grinding as well as Dry Grinding.

- Wheel-Head can be Rotated & Tilted on both Vertical & Horizontal Axis.

- Features like Auto-Slow, Delay, 3 Different Modes of Hydraulic Table Movement etc.

- Complete with Work-Head, Relieving Attachment, Internal Grinding Attachment, etc.

- Complete with Tilting type Vice, pair of Centers, and many other accessories.

- Complete with Coolant Tank and Pump.

- Operating Manual & Electrical Drawings of the machine are available.

- Machine is in excellent working condition.
