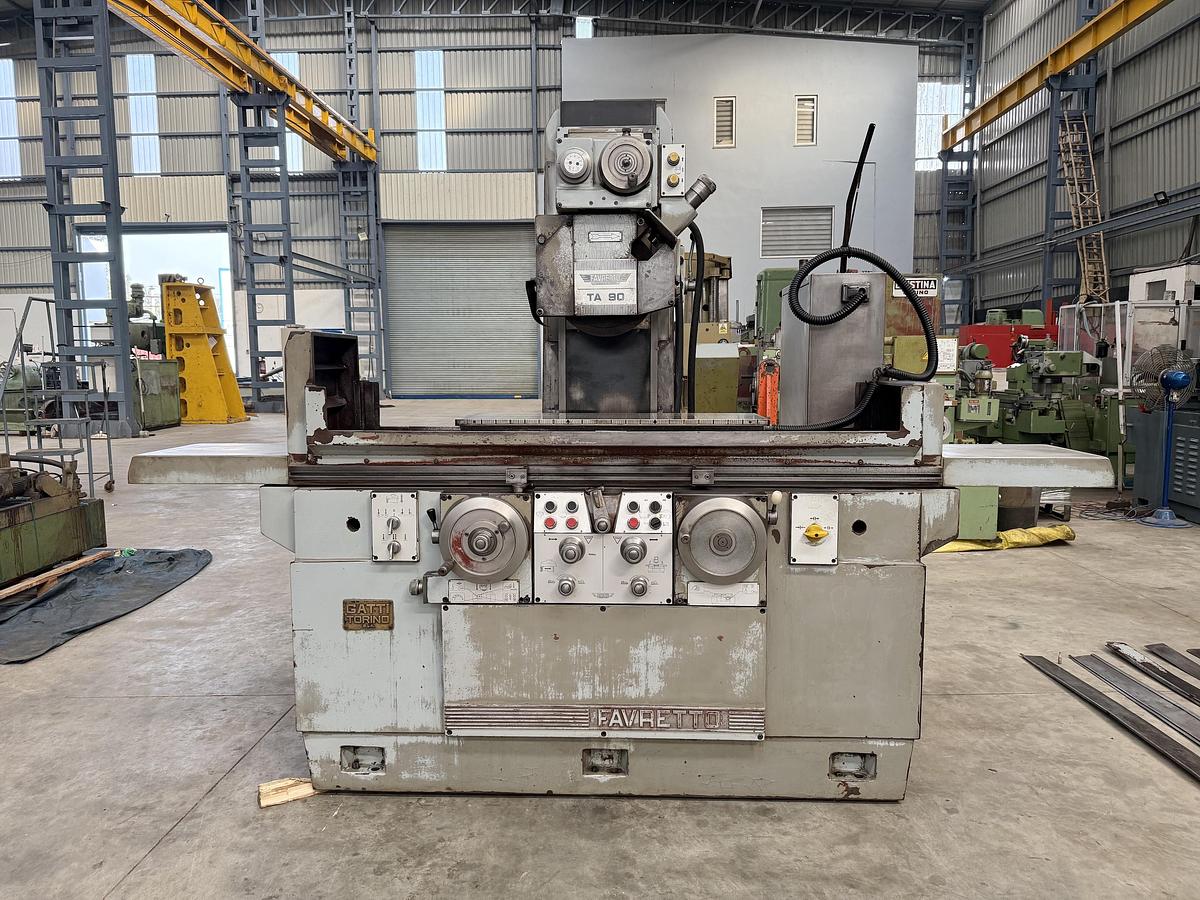

Favretto TA-90 300 mm x 900 mm Surface Grinding Machine
Favretto TA-90 300 mm x 900 mm Surface Grinding Machine
Contact us for price
Location:New Delhi, India
Description
Favretto (Italy) make Surface Grinding Machine in excellent working condition. The model of the machine is TA-90 and the Grinding Capacity of the machine is 300 mm x 900 mm. The machine is complete with its Wheel Top Mounted Wheel Dresser, Coolant Filtration Unit, Coolant Tank & Pump, Splash Guards etc. The technical details are as follows -
Make - Favretto (Italy)
Model - TA-90
Magnet Size - 300 mm x 900 mm
Grinding Wheel Size - Diameter 350 mm x 50 mm Width
Max. Height between Magnet to Wheel Center - 405 mm
Longitudinal Travels - 1040 mm
Cross Travels - 300 mm
Least Count of Vertical Travel - 5 Micron (0.005 mm)
- Equipped with a Top Mounted Wheel Dresser.
- With Motorised Vertical Travel of the Wheel-Head.
- Feature of Automatic Depth Adjustment "Auto-Cut" and Automatic Plunge Grinding.
- Complete with Coolant Filtration Unit, Coolant Tank and Pump, Splash Guards.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Favretto |
| Model | TA-90 |
| Condition | Used |
| Stock Number | 2422 |
| Make | Favretto (Italy) |
| Model | TA-90 |
| Magnet Size | 300 mm x 900 mm |
| Grinding Wheel Size | Diameter 350 mm x 50 mm Width |
| Max. Height between Magnet to Wheel Center | 405 mm |
| Longitudinal Travels | 1040 mm |
| Cross Travels | 300 mm |
| Least Count of Vertical Travel | 5 Micron (0.005 mm) |
| Other Information 1 | - Equipped with a Top Mounted Wheel Dresser. |
| Other Information 2 | - With Motorised Vertical Travel of the Wheel-Head. |
| Other Information 3 | - Feature of Automatic Depth Adjustment "Auto-Cut" and Automatic Plunge Grinding. |
| Other Information 4 | - Complete with Coolant Filtration Unit, Coolant Tank and Pump, Splash Guards. |
| Other Information 5 | - Machine is in excellent working condition. |
