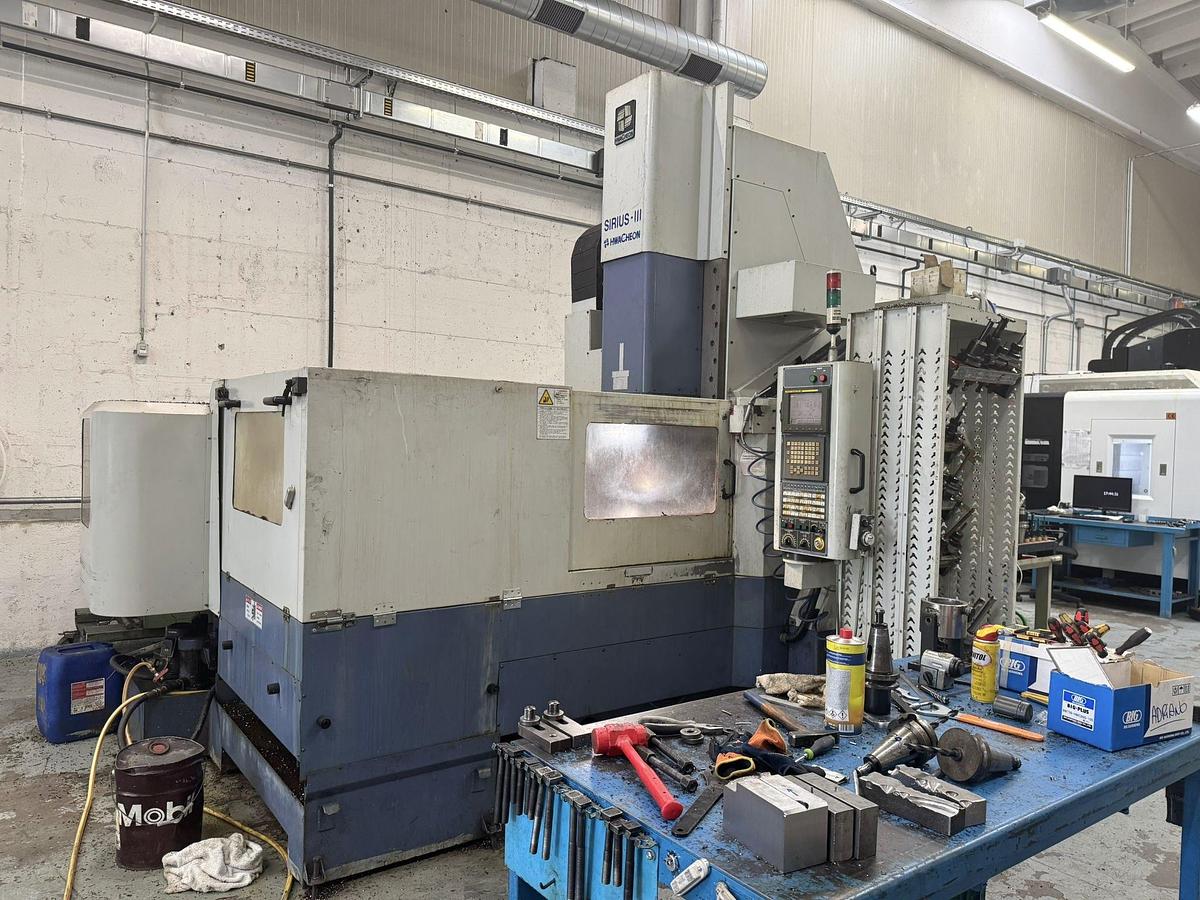

Hwacheon Korea Sirius-III Double Column Vertical Machining Center

Hwacheon (Korea) make Heavy Duty Double-Column Vertical Machining Center in excellent working condition. The model of the machine is Sirius-III and the Table Size is 1400 mm x 700 mm. The Distance between Columns is 1100 mm. The technical details are as follows -

Make - Hwacheon (Korea)

Model - Sirius III

Table Size - 1400 mm x 700 mm

XYZ Travels - 1100 mm x 700 mm x 650 mm

Distance between Columns - 1100 mm

Max. Height between Table Top to Spindle - 825 mm

Spindle Speeds - 30 rpm to 8000 rpm

Spindle Taper - CAT-50

CNC Controller - Fanuc 18i-MB

No. of Tools in Automatic Tool Changer (ATC) - 30 Tools

Rapid Travel Rate - 24 meters / minute

Spindle Motor - 30 / 25 kW

Max. Weight of the Job - 2500 kg

Weight of the Machine - 16.5 Tons (Approximately)

- It is a Heavy Duty type Double Column VMC Machine.

- Complete with Spindle Oil Chiller, Step Down Transformer, etc.

- Complete with Chip Conveyor, Coolant Tank, Guards, Covers etc.

- Machine is in excellent working condition.
