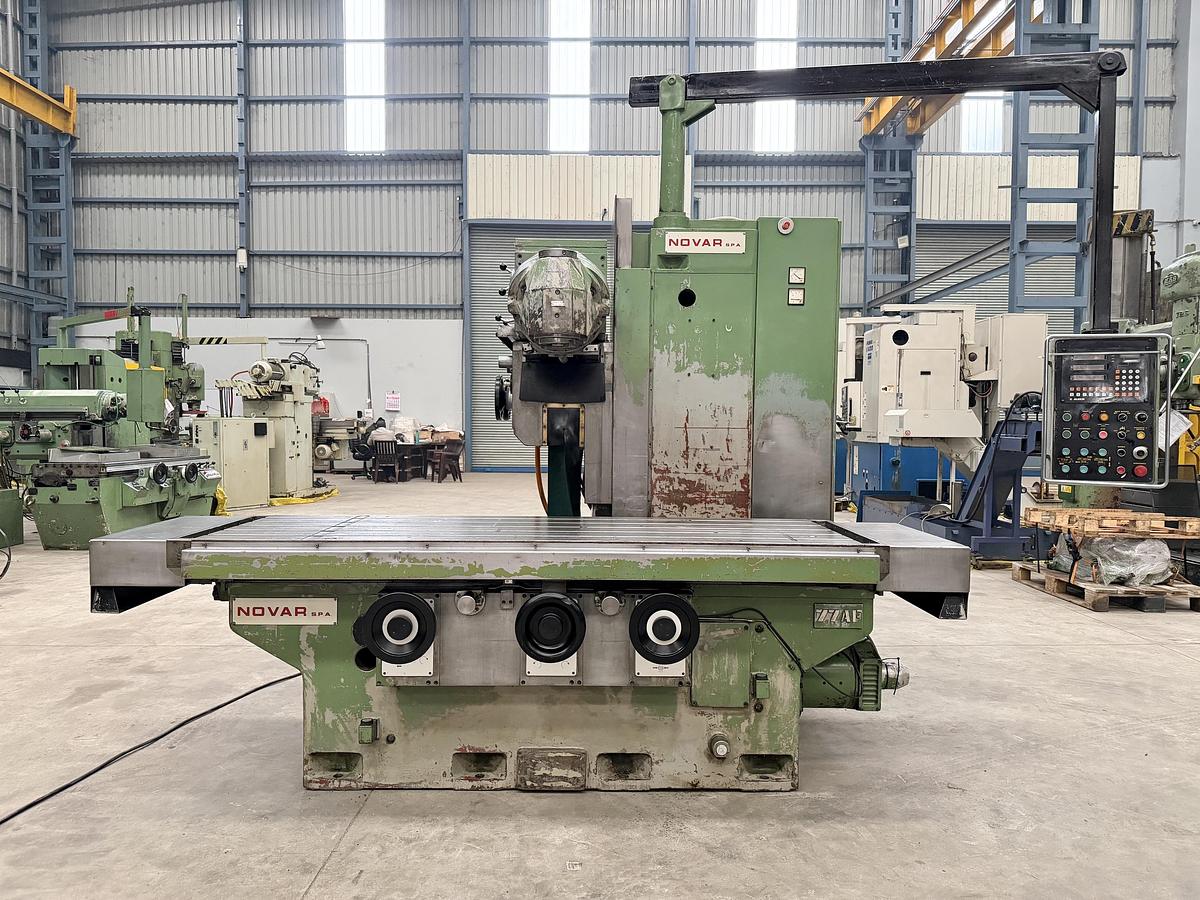

Zayer Spain 77-AF Heavy Duty Universal Bed Milling Machine

Zayer (Spain) make Heavy-Duty Universal Bed Milling Machine in excellent working condition. The model of the machine is 77-AF and the Table Size is 2160 mm x 700 mm. This machine has been made in collaboration with Novar (Italy). The machine has a Universal type Dual-Swivel type Milling Head which is capable of doing Vertical, Horizontal as well as Angular Milling operations. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -

Make - Zayer (Spain)

Model - 77-AF

Table Size - 2160 mm x 700 mm

XYZ Travel of Table - 1800 mm x 1000 mm x 900 mm

Spindle Taper - ISO 50

Spindle Speeds - 28 rpm to 1800 rpm

Table Feed Rate of Travel - 0 mm/min to 1000 mm/min (Infinitely Variable)

Spindle Motor Power - 11 kW

Max. Height between Table Top & Spindle - 925 mm

Weight of the Machine - 8.80 tons

- Equipped with a 3-Axis DRO.

- Universal type Double-Swivel Milling Head suitable for Vertical, Horizontal & Angular Milling.

- Machine is in excellent working condition.
