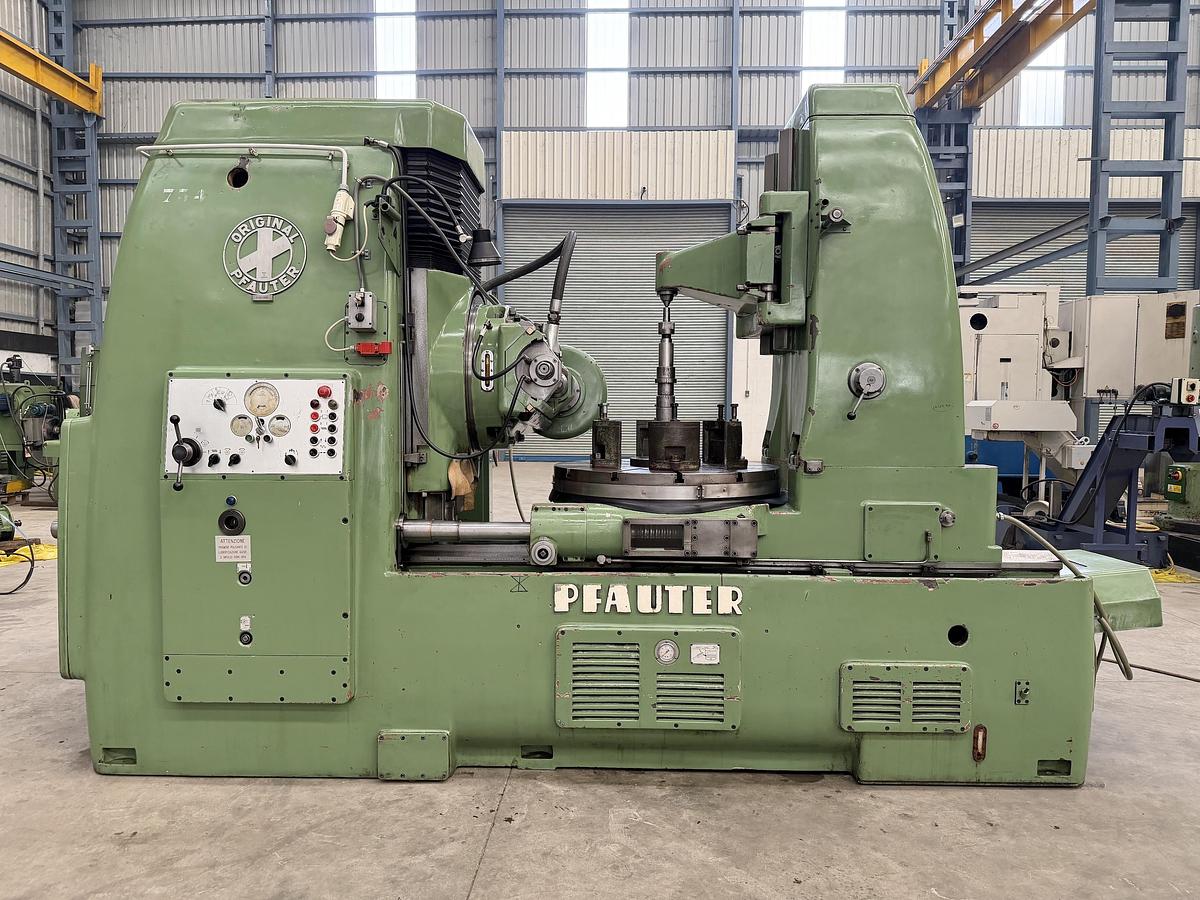

Pfauter P-1250 Hydraulic Gear Hobbing Machine

Pfauter (Germany) make High-Production Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is P-1250 and the Maximum Module Capacity is 12 Modules and Maximum Gear Diameter is 1250 mm. It is a Heavy-Duty, High-Speed, complete Auto-Cycle type Gear Hobbing Machine. The machine is capable of Radial Hobbing, Axial Hobbing, Tangential Hobbing, Radial-Axial Hobbing, Radial-Tangential, etc. The machine also has a Sliding type Support Column so it is not necessary to take off the support column even for larger diameter jobs. It is also equipped with a Hydraulically operated swivell-able tail-stock. The machine is capable of complete Auto-Cycle working and it can also be used in manual mode. The machine is complete with its Change Gears, Mandrels, many different types & sizes of Job Supports, Operating Manual, Coolant Tank and Pump, Leveling Pads, Covers, Splash Guards , Chip Conveyor, and many other accessories. The technical details are as follows -

Make - Pfauter (Germany)

Model - P-1250

Max. Module - 12 modules

Max. Diameter of the Gear - 1250 mm

Max. Vertical Travel of Hob-Slide - 590 mm

Table Diameter - 950 mm

Max. Hob Cutter Size - Diameter 220 mm x 260 mm Length

Max. Hob Shifting - 240 mm

Table Bore Diameter - 200 mm

Hob Cutter Speeds - 32 rpm to 200 rpm

Min. Distance between Center of Hob & Work-Piece - 60 mm

Max. Distance between Center of Hob & Work-Piece - 740 mm

Max. Diameter of Gear with Tail-Stock - 850 mm

Weight of the Machine - 15.5 tons (Approximately)

- It is a High-Production Auto-Cycle type Heavy Duty Gear Hobbing Machine.

- Continuously variable Hob Rotation Speeds & Feed Rates of Travels.

- Complete with Change Gears, Mandrels, Job Supports, Leveling Pads etc.

- Complete with Covers & Splash Guards, Coolant Tank, Pump & many other accessories.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.
