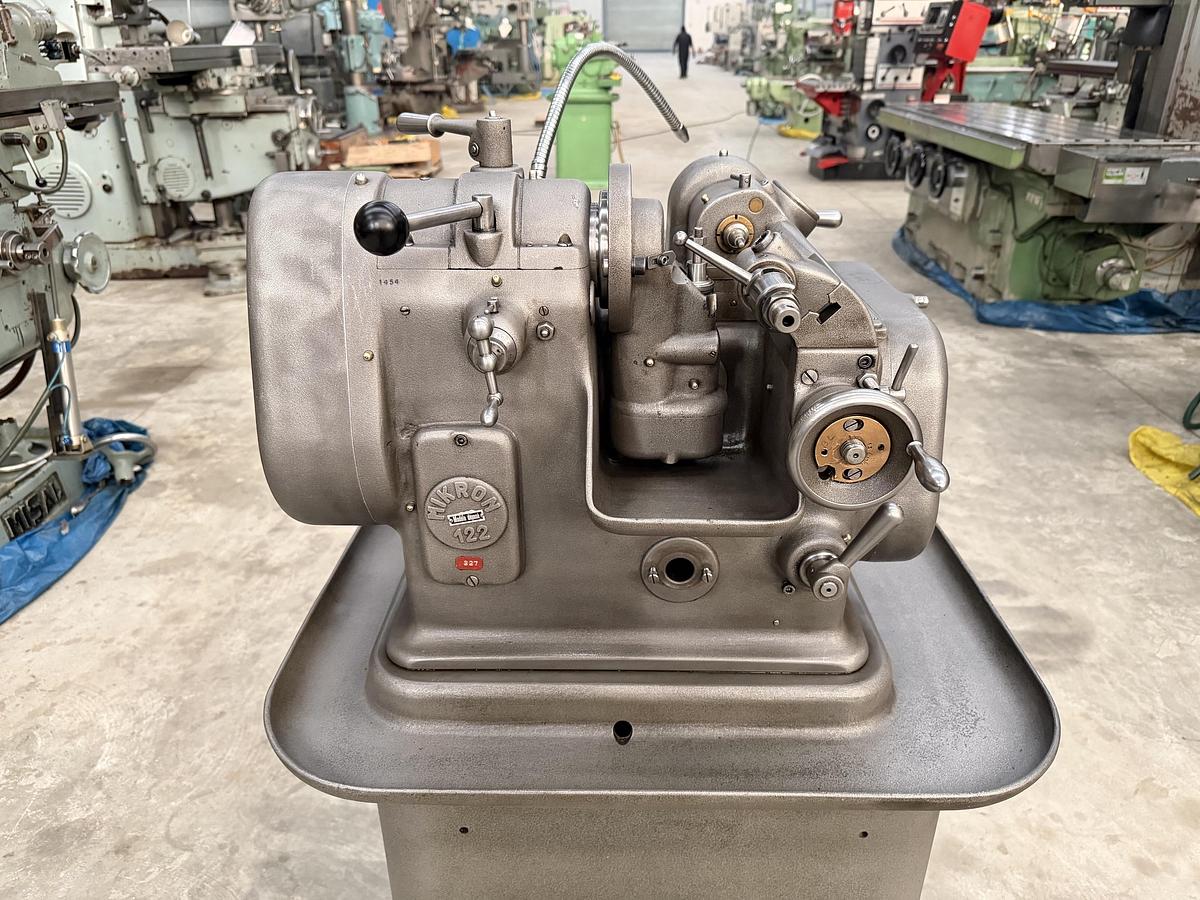

Mikron Switzerland Type 122 Precision Horizontal Gear Hobbing Machine

Mikron (Switzerland) make High-Precision Horizontal Gear Hobbing Machine in excellent condition. The model of the machine is Type 122 and it is complete with Change Gears, Operating Manuals, Electrical Drawings, spare Spindle & many other accessories. The technical details are as follows -

Make - Mikron (Switzerland)

Model - Type 122

Max. Module Capacity - 1 Module

Max. Gear Diameter - 40 mm

Max. Travel of the Cutter Slide - 40 mm

Max. Hobbing Length - 35 mm

No. of Teeth - 6 to 400

Swivel Range of the Cutter Spindle - 95 degree Right to 90 degree Left

Longitudinal Travel of Hob-Cutter Spindle (Hob-Shifting) - 10 mm

Max. Spindle Speeds - 2000 rpm

Max. Distance between Work-spindle & Tail-stock - 105 mm

Min. Distance between Work-spindle & Tail-stock - 40 mm

Max. Distance between Cutter (of 24 mm Dia.) and Center of Work-Spindle - 27 mm

- Machine is complete with Change Gears, spare Spindle, & many other accessories.

- Operating Manual, Calculation Manual, Electrical Drawings of the machine are available.

- Machine is in excellent working condition.
