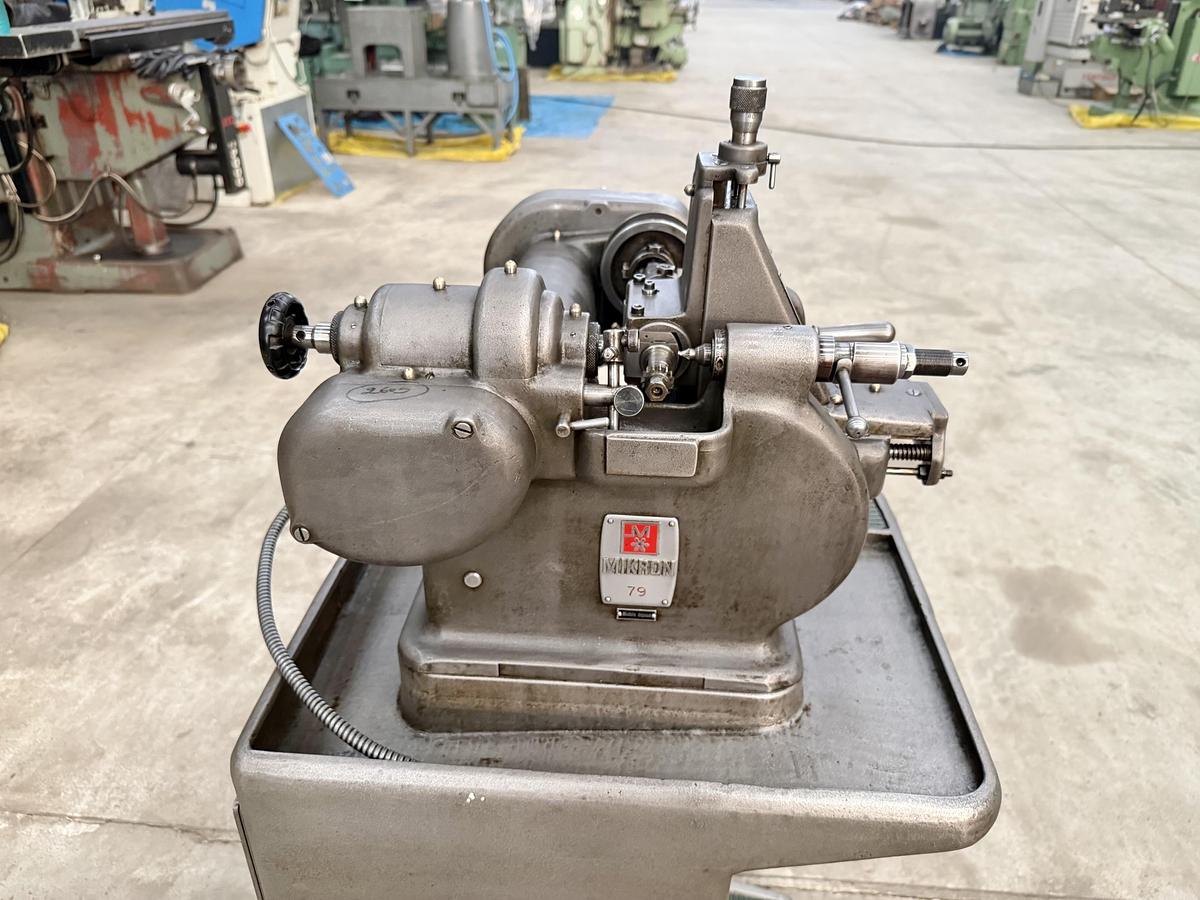

Mikron Switzerland Type 79 Precision Horizontal Gear Hobbing Machine

Mikron (Switzerland) make High-Precision Horizontal Gear Hobbing Machine in excellent condition. The model of the machine is Type 79 and it is a mechanically controlled Auto-Cycle machine. Upon starting the machine, the cutter is raised to the tooth depth, does the hobbing on the work-piece, and then falls back to its starting position. The technical details are as follows -

Make - Mikron (Switzerland)

Model - Type 79

Max. Module Capacity - 1 Module

Max. Gear Diameter - 46 mm (with Cutter Dia. of 18 mm)

Max. Gear Diameter - 40 mm (with Cutter Dia. of 24 mm)

Max. Travel of the Cutter Slide - 46 mm

Max. Hobbing Length - 38 mm

No. of Teeth - 6 to 390

Swivel Range of the Cutter Spindle - 0 degree to 4 degree

Max. Spindle Speeds - 3200 rpm

Max. Distance between Work-spindle & Tail-stock - 74 mm

Min. Distance between Work-spindle & Tail-stock - 32 mm

Max. Distance between Cutter (of 24 mm Dia.) and Center of Work-Spindle - 34 mm

- Mechanically Controlled Automatic Cycle working.

- Machine is complete with Change Gears, Collets, & other accessories.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.
