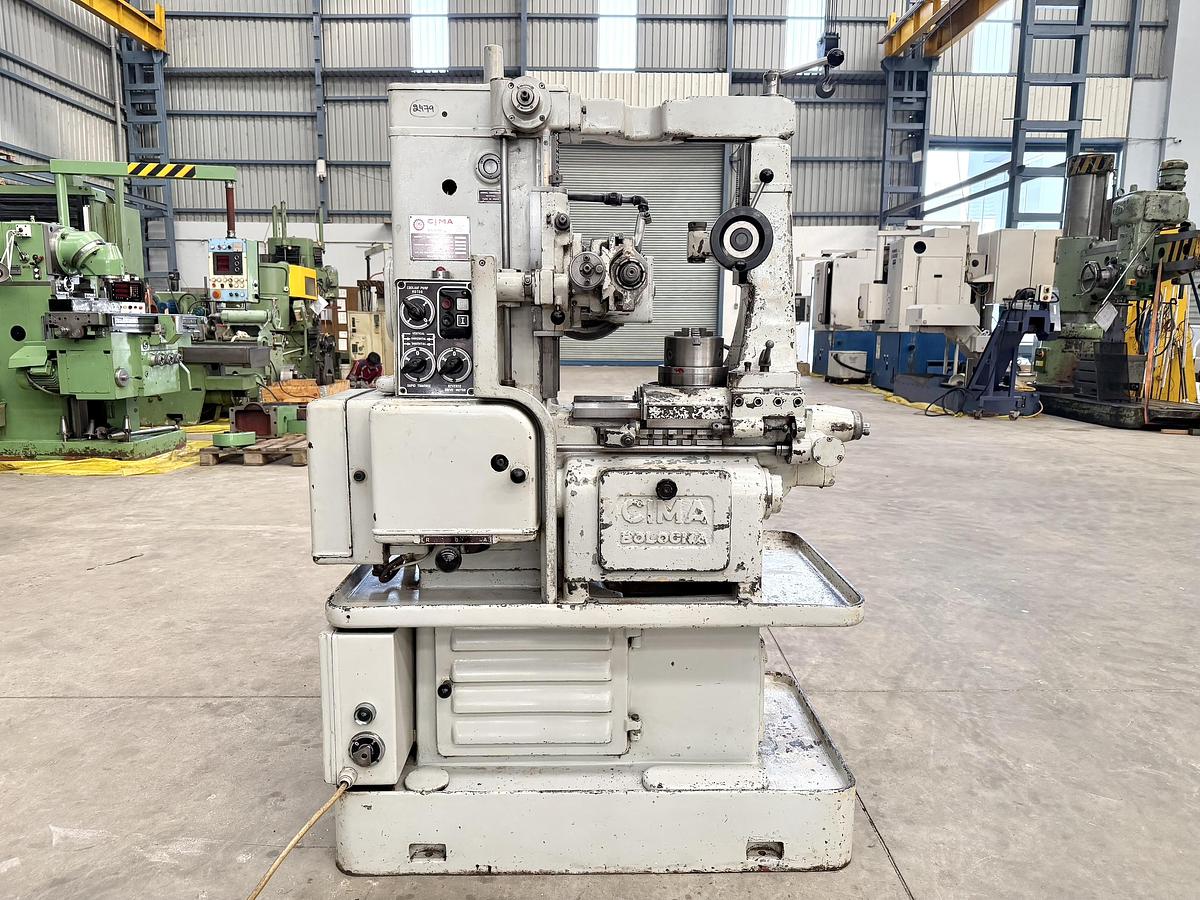

CIMA Italy P-3 Gear Hobbing Machine

Cima (Italy) make Gear Hobbing Machine in excellent working condition. The model of the Machine is P3 and the Max. Gear Diameter with Tail-Stock is 155 mm and the Max. Module Capacity is 3 Modules. It is a mechanical type Gear Hobbing with Motorised Rapid Travels and Feed Travels on the Vertical, Longitudinal, & Tangential (Hob Shifting) Travels. The technical details are as follows -

Make - Cima (Italy)

Model - P3

Max. Module - 3 Modules

Max. Gear Diameter - 155 mm (with Tail-Stock)

Vertical Travel of Hobbing Head - 220 mm

Max. Hob Cutter Diameter - 80 mm

Table Diameter - 150 mm

Max. Height between Table Top & Center - 400 mm

- Motorised Rapid & Feed Travels on Vertical, Longitudinal (Table) & Tangential (Hob Shifting).

- With Change Gears, Mandrels, Arbours, Covers & other accessories etc.

- Operating Manual of the Machine is available.

- Machine is in excellent working condition.
