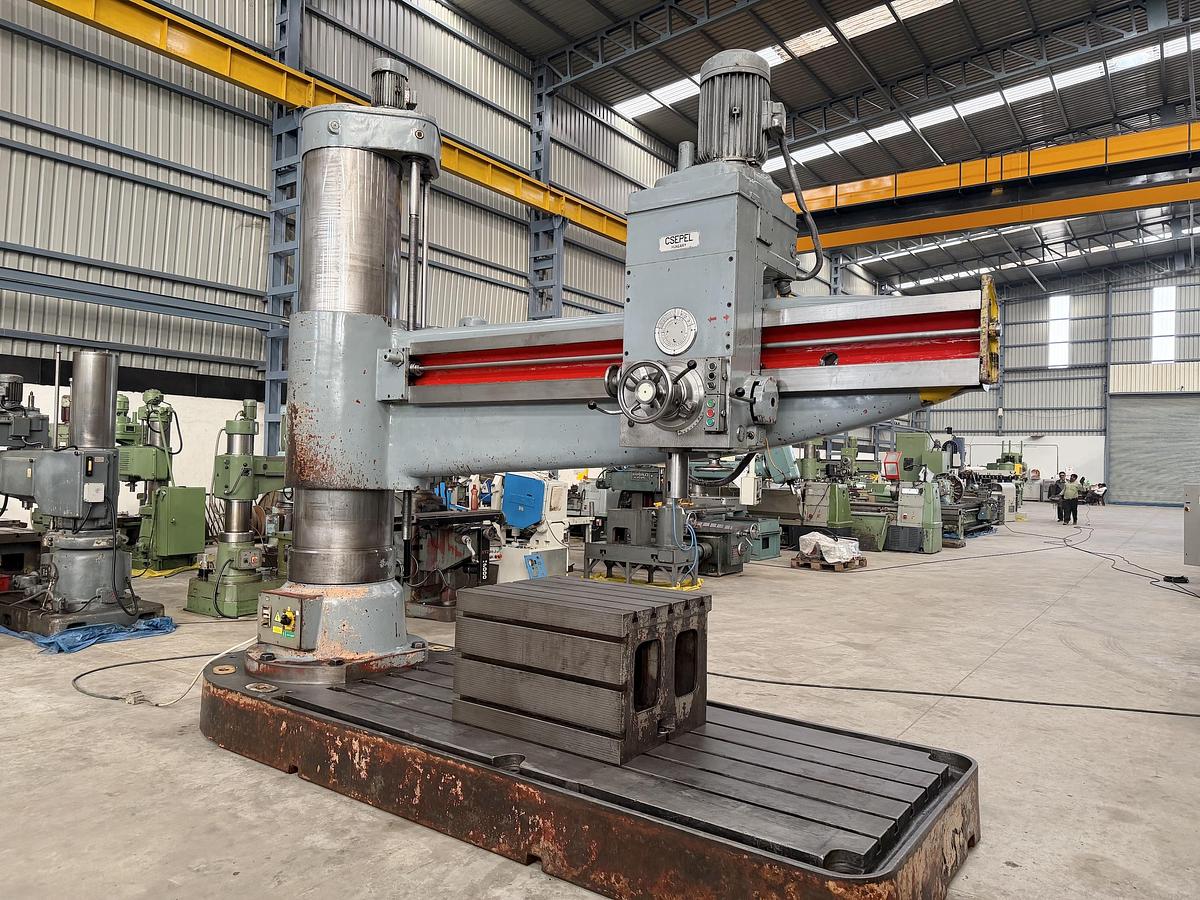

Csepel Hungary RFH-100/3000 Heavy Duty Radial Drilling Machine

Csepel (Hungary) make Heavy Duty Radial Drilling Machine in excellent working condition. The model of the machine is RFH-100/3000. The Drilling Capacity of the Machine is 100 mm and the Arm Length is 3100 mm. The technical details are as follows -

Make - Csepel (Hungary)

Model - RFH-100/3000

Drilling Capacity - 100 mm

Spindle Diameter - 115 mm

Arm Length - 3100 mm

Spindle Speeds - 18 rpm to 1800 rpm

Spindle Taper - MT-6

Spindle Feed Travel - 400 mm

Spindle Feed Rate of Travel - 0.037 mm/rev to 2.00 mm/rev

Vertical Travel of Arm - 1250 mm

Max. Height between Spindle to Top of Base - 2100 mm

Cube Table Size - 1000 mm x 800 mm

Weight of the Machine - 14.8 Tons

Clamping Type - Hydraulic

- Machine is in excellent working condition.
